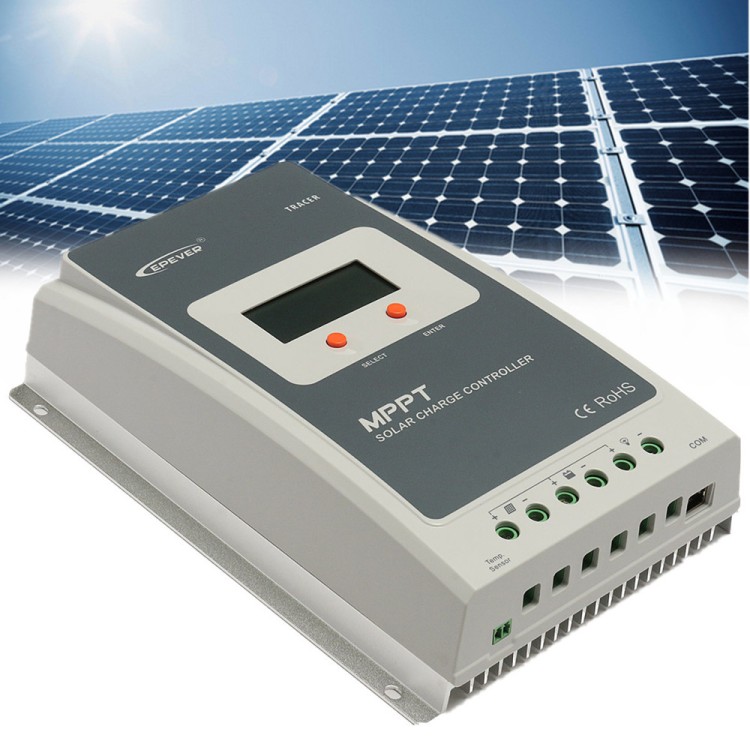

EPSOLAR TRACER 2210AN 20A MPPT charge controller uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators.
Equipped with built-in multi-function LCD display. Thanks to this function, the output current is higher than that produced directly by the photovoltaic panel. For example the current from the panel may be 8A but the output current may be 10A. In practice, the regulator exploits the voltage jump that is normally present between the photovoltaic panel (17/18V) and the battery (13/14V), transforming it into current. It can work in 12V systems for a maximum panel power of 260W and in 24V systems for a maximum panel power of 520W, managing a total current of 20A. The TRACER MPPT accepts a maximum voltage from the panels of 100V. In this way, it is also possible to connect energy account panels in 12Vdc or 24Vdc systems. It will therefore be possible to use panels that are not compatible with classic charge regulators in systems for campers, cabins or boats, for example.
CHARACTERISTICS
Automatic recognition of 12/24V system voltage
Automatic MPPT function (Advance maximum power point tracking)
Automatic day/night recognition
The DUAL TIMER function allows you to program the number of hours a load (e.g. lamps) stays on, after sunset and before sunrise.
Possibility of using sealed lead batteries (including AGM), gel batteries and non-sealed lead batteries
Uses temperature compensation to correct charge and discharge parameters, improving battery life
Electronic protection against overload, short circuit, overvoltage and reverse polarity of the panel and battery
LVD function protects the battery from deep discharge.
10mmq cable clamps
Possibility to connect a MT-50 remote display
RJ45 port for RS-485 communication for software upgrade.
Port for connecting the temperature probe, for measuring the temperature of the batteries.
TECHNICAL INFORMATION
Rated voltage: 12VDC/ 24VDC
Maximum battery current: 20A
Maximum load output current: 20A
Maximum battery voltage: 32V
Maximum Input Voltage: 100Vdc
Maximum input power: 260W 12V system / 520W 24V system
Self-consumption: ?12mA (24V)
RJ45 Connector: 8 Pin
Night detection threshold: 5V (12V system) 10V (24V system)
Day detection threshold: 6V (12V system) 12V (24V system)
Ambient Temperature Range: -35°C to +55°C
Temperature compensation coefficient: -30mV/?/12V(25? ref)
This charge controller can be combined with the EPsolar MT50 display, to be able to view the data more conveniently if the controller is positioned in a difficult to access area.
