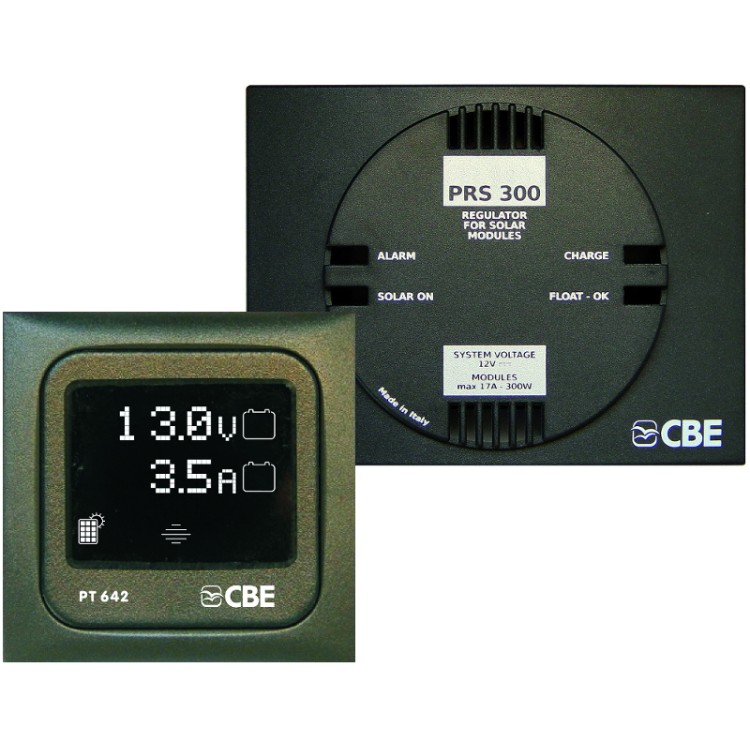

CBE PRS300 charge regulator kit with CBE PT642 display.
THE PRS300 PHOTOVOLTAIC MODULE REGULATOR is designed and built with innovative electronic techniques that allow maximum performance of the photovoltaic modules connected to it.
The regulator is suitable for connecting 12V photovoltaic modules up to a maximum total power of 300W and is designed for connecting the PT642 test panel required for checking the charging of the photovoltaic modules and the battery voltage.
The PRS300 is capable of charging lead-gel, lead-acid and AGM batteries using the appropriate charging line (selectable with the switch located inside the regulator).
A desulfation function is provided which activates automatically when the battery requires this process.
The device has 4 LEDs for signalling:
Battery charging phase with maximum current until the end-of-charge voltage is reached.
Constant voltage maintenance phase.
Incorrect electrical connection alarm.
Regulator on (in the absence of sunlight the regulator switches off automatically).
High electrical efficiency and very low heat dissipation characterize the PRS300.
Display
Digital touch test panel for checking battery voltage and current supplied by the photovoltaic module, complete with 1.5m cable, spacer for wall fixing and Berker ?BMAC1C? frame.
Suitable for regulator mod. ?PRS300?.
Furthermore, the panel can be combined with the Modular Plates and Modular Plates Berker series.
The panel can be combined with the ?MODULAR PLATES? series.
TECHNICAL INFORMATION
Regulator
- Recommended photovoltaic module power: 300 Watt Max
- Photovoltaic input number: 2
- Rated voltage: 12V
- Auto power off: in the absence of sunlight
- Maximum voltage: 14.3V (Pb-Gel) 14.1V (Pb-Acid) 14.7 (AGM and Lithium)
- Float voltage: 13.8V (Pb-Gel) 13.5V (Pb-Acid) 13.8V (AGM and Lithium)
- Battery desulfation: Yes
- Reverse current blocking device: Electronic
- Dimensions: 115x88x37 mm
- Weight: 120gr
Display packaging
- RAL7015 grey colour
- Size 60x60 mm.
- 1.5m cable
Package Contents
- 1 CBE PRS300 charge controller
- 1 CBE PT642 grey display with cable L= 1.5m
- 1 Spacer color grey RAL7015
