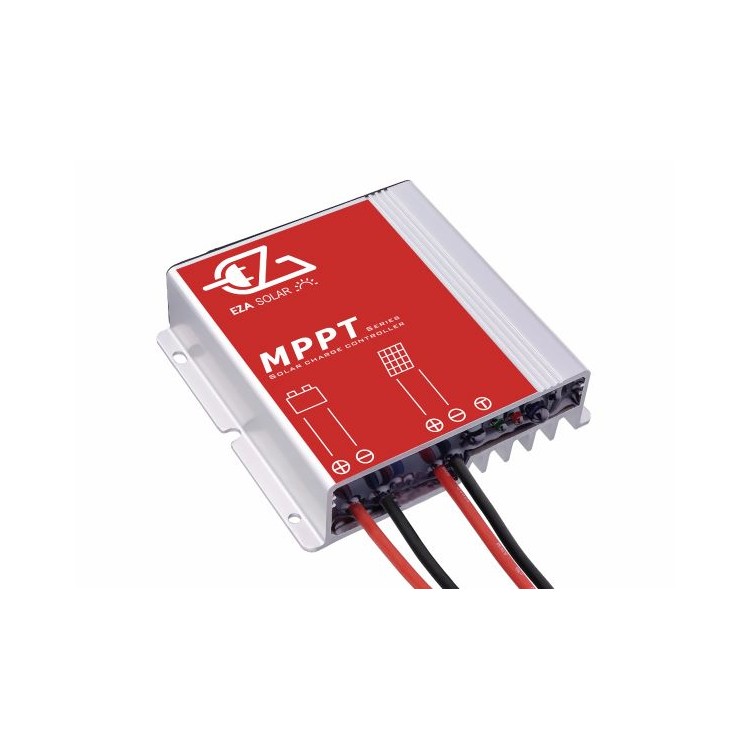

SOLAR REGULATOR MPPT 10A Waterproof IP67
Every solar installation needs a solar charge controller. As the name suggests, this device regulates the solar charge created by your photovoltaic panel to optimize performance and protect your battery.
Using Maximum Power Point Tracking (MPPT) technology, the Eza regulator constantly measures and compares the voltage delivered by the panel to that of the battery. In other words, it calculates the maximum level of power that the panel can provide to the battery and that the battery is able to receive. From this value, it determines the most appropriate voltage to send the maximum number of Amps to the battery. Using an MPPT regulator, you can typically get up to 30% more power than a traditional regulator.
Get the most out of your solar panel throughout the day, regardless of
both the season. Thanks to the MPPT "Maximum Power Point Tracking" technology (search for the point
of maximum power) the regulator constantly measures and compares the voltage released by the
panel with that of the battery. Calculate the maximum power level that the panel can
deliver to the battery and that it is able to receive. Starting from this value, determine the
most suitable voltage to send the maximum Ampere into the battery. Using a regulator
MPPT generally achieves up to 30% more power than
to a classic regulator.
Suitable for batteries with a nominal voltage of 12V. Recommended use with solar panels
power up to 130W. Protection against battery polarity reversals, the
short circuits and overheating. Load output with protection
low voltage
TECHNICAL INFORMATION :
- Technology : MPPT
- Low voltage disconnect/reconnect : 10.8V / 12.6V
- Floating voltage/high voltage disconnection: 13.8V / 16V
- Reverse polarity safety device : Yes
- Short circuit safety device : Yes
- Overheat protection : Yes
- Fixing type: screw
- Delivered with instructions
- Certifications / Approvals : CE R10 compliant environment
- Warranty: 24 months
- Maximum charging current: 10A
- Rated voltage: 12V DC
- Compatible battery type: AGM / Gel / Acid
- Maximum power panel(s): 130W
- Open circuit voltage: 45V
- No-load current: 6mA
- Communication mode: LED display
- Bluetooth: No
- Overvoltage protection: Yes, 16V
- Enclosure type: Aluminum
- DC connection: Pre-wired 4mm²
- Product Dimensions (L x W x H): 85.8 x 81 x 23.1 mm
- Net weight: 0.26KG
- IP Rating: IP67
Other features
- MAXIMUM LOAD CURRENT : 10A A
- MAXIMUM PANEL POWER(X): 130W
- COMPATIBLE BATTERY TYPE: AGM/GEL/ACID
- TECHNOLOGY : MPPT
- RATED VOLTAGE : 12V DC
- OPEN CIRCUIT VOLTAGE : 45V
- LOW VOLTAGE DISCONNECT/RECONNECT : 10.8V / 12.6V
- FLOATING DISCONNECT/HIGH VOLTAGE: 13.8V / 16V
- NO LOAD CONSUMPTION: 6mA
- Dimensions (LxWxH): 85.8 x 81 x 23.1 mm
- COMMUNICATION MODE : LED DISPLAY
- BLUETOOTH : NO
- OVERVOLTAGE PROTECTION: YES, 16V
- REVERSE POLARITY PROTECTION : YES
- SHORT CIRCUIT PROTECTION : YES
- OVERHEATING PROTECTION : YES
- HOUSING TYPE: ALUMINUM
- TYPE OF FIXING: VIS
- DC CONNECTORS : 4mm2 CABLE
- PRODUCT DIMENSIONS IN MM (L x W x H): 85.8*81*23.1
- NET WEIGHT: 0.30KG
- BOOK WITH: NOTICE
- IP PROTECTION RATING: IP67
- CERTIFICATIONS, APPROVALS: CE R10 compliant
- WARRANTY: 2 YEARS
- Model : 10A
