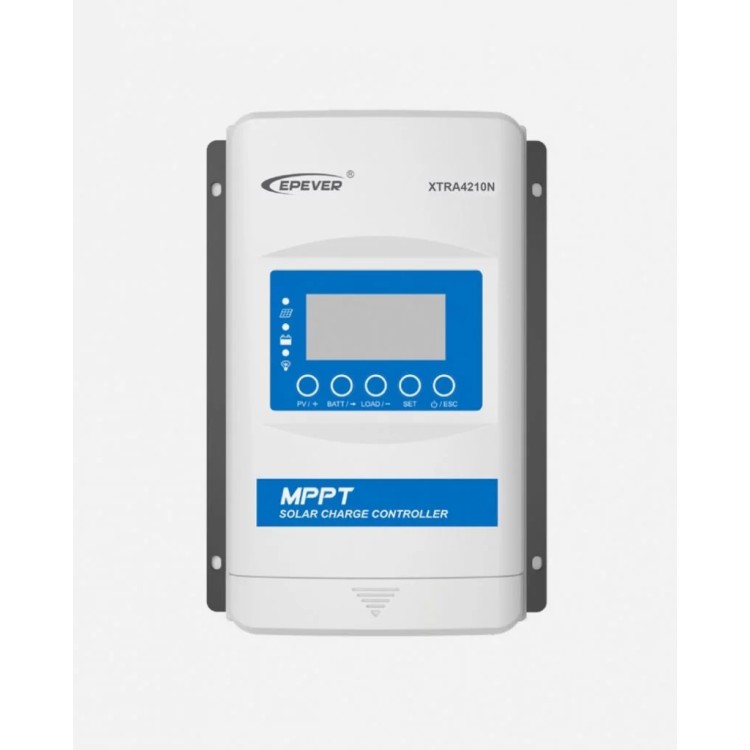

SOLAR CHARGE CONTROLLEREPEVER®XTRA 4210N-XDS2 MPPT
The XTRA-N series is the latest member of EPEVER's family of MPPT regulators.
It has improved design and performance based on the previous successful Tracer AN series.
MPPT (Max Power Point Tracking) accurately detects different maximum power points (MPP) of the solar module, so you can expect 20-30% more power from the solar module. I
The XTRA-N series display has three different options, SolarV provides the premium display (XDS2).
With the premium display (XDS2) you can directly see the PV (voltage/current/generated energy/power) and battery (voltage/current/temperature/capacity) and load working status (voltage/current/power/load working mode).
FEATURES • Advanced MPPT technology • High efficiency over 98% • Recording speed "ultra-fast" • Precise detection of several maximum power points (MPP) • Multifunctional LCD display • Manual adjustment of battery types, load control etc. • Negative grounding via (-) pole • RS485 interface with industry standard MODBUS • Functions fully programmable via PC software • Automatic limitation of power and charging current • Wide voltage range MPP operating mode • Suitable for lead-acid and lithium-ion batteries • Battery temperature compensation function • Real-time energy statistics • Overheating reduction function • Multiple operating modes for charging
TECHNICAL INFORMATION
Rated voltage: 12VDC/ 24VDC
Maximum battery current: 40A
Rated discharge current: 40A
Battery voltage range: 8-32V
Tmaximum open circuit voltage of the photovoltaic: 100V? 92V?
MPPT voltage range: Battery voltage +2V ~ 72V
Maximum PV input power: 520W / 12V 1040W / 24V
Self-consumption: ≤35mA @ 12V; ≤22mA @ 24V
Discharge circuit voltage drop: ≤0.23V
Ambient temperature range: -25°C to +50°C
Comp. temperature coefficient:-3mV / ° C / 2V (standard)
