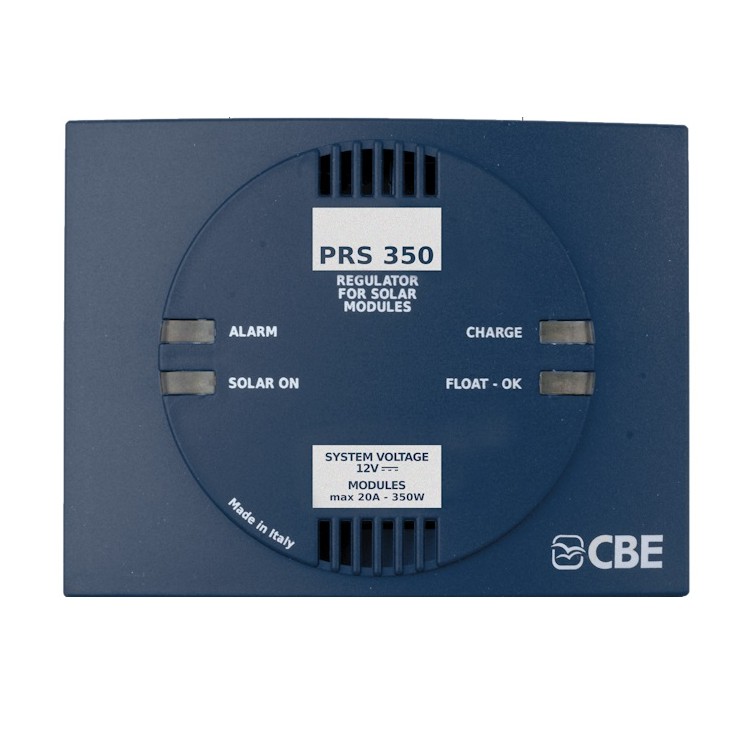

CBE PRS350 Charge regulator for camper photovoltaic panel
The PRS350 solar regulator is suitable for operation with 12V photovoltaic modules. Designed and manufactured with innovative electronic techniques, it is characterized by high electrical efficiency and very low heat dissipation. PRS350 has different charging lines, selectable with a switch located inside the regulator. A desulfation function is provided that is activated automatically only if the battery requires it. The 4 LEDs on the device indicate the battery charge status, any incorrect electrical connection and the device's power status.
TECHNICAL FEATURES:
MODEL: PRS350 CODE: 204480 RATED VOLTAGE: 12V MAXIMUM APPLICABLE POWER: 350W NUMBER OF PHOTOVOLTAIC INPUTS: 2 AUTOMATIC SHUT-OFF: in the absence of sunlight END OF CHARGING VOLTAGE: 14.1V (A) - 14.3V (B) - 14.7V (C) - 14.5V (Li) MAINTENANCE VOLTAGE: 13.5V (A) - 13.8V (B) - 13.6V (C) - 13.5V (Li) NUMBER OF CHARGING LINES: 4 REVERSE CURRENT BLOCKING DEVICE: Electronic REVERSE POLARITY PROTECTION: Yes BATTERY DESULPHATION: Yes (except for the lithium charging line) CONNECTION OF PT 742 TEST PANEL SELF-CONSUMPTION 0A (auto-off in the absence of sunlight) DIMENSIONS (mm): 115x90 H37
