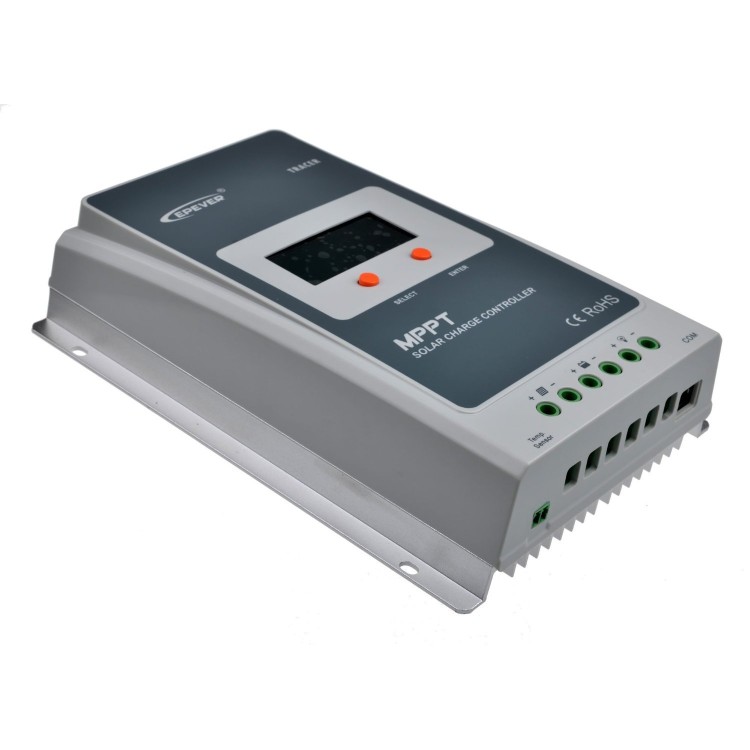

EPSOLAR TRACER1210AN 10A MPPT charge controller uses the latest technology for these devices.
This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators.
Very high maximum power point tracking efficiency, equal to or greater than 99.5%
Thanks to this function, the output current is higher than that produced directly by the photovoltaic panel.
For example the current from the panel may be 8A but the output current may be 10A.
In practice, the regulator exploits the voltage jump that is normally present between the photovoltaic panel (17/18V) and the battery (13/14V), transforming it into current.
It has a built-in multifunction LCD display and programming keys.
Therefore, it is simple to navigate through the various menus and read the various parameters, such as panel and battery voltage, generated current, current absorbed by the load, etc.
It can work in 12V systems for a maximum panel power of 130W and in 24V systems for a maximum panel power of 260W, managing a total current of 10A.
The EPSOLAR TRACER MPPT accepts a maximum voltage of 92V from the panels. This way, you can also connect feed-in panels to 12Vdc or 24Vdc systems.
It will therefore be possible to use panels that are not compatible with classic charge regulators in systems for campers, cabins or boats, for example.
CHARACTERISTICS
- Automatic recognition of 12/24V system voltage
- Automatic MPPT function (Advance maximum power point tracking)
- Built-in multifunction display
- Automatic day/night recognition
- The DUAL TIMER function allows you to program the number of hours a load (e.g. lamps) stays on, after sunset and before sunrise.
- Possibility of using sealed lead batteries (including AGM), gel batteries and non-sealed lead batteries
- Uses temperature compensation to correct charge and discharge parameters, improving battery life
- Electronic protection against overload, short circuit, overvoltage and reverse polarity of the panel and battery
- Large size aluminum heatsink
- LVD function protects the battery from deep discharge.
- RJ45 interface for connecting MT-50 Remote Display (optional) or USB adapter (Optional)
TECHNICAL INFORMATION
- Rated voltage: 12VDC/ 24VDC
- Maximum battery current: 10A
- Battery voltage range: 8-32V
- Maximum Input Voltage: 100V @ -25°C ; 92V @ 25°C
- Maximum input power: 130W 12V system / 260W 24V system
- Self-consumption: ?20mA @ 12V ; ?16mA @ 24V
- RJ45 Connector: 8 Pin
- Night detection threshold: 5V (12V system) 10V (24V system)
- Day detection threshold: 6V (12V system) 12V (24V system)
- Ambient Temperature Range: -25°C to +45°C
- Comp. Temperature Coefficient : -3mV/ ºC/2V(25 ºC)
- IP Class: IP30 (indoor use)
- Dimensions: 172x139x44mm
- Mounting hole spacing: 150x70mm 4 holes
- Weight: 0.6kg
This charge controller can be combined with the MT50 display ( optional ) from EPsolar, to be able to view the voltage and current data in a more convenient position than where the charge controller can be positioned.
Also available is the USB programming cable ( optional ).
Data sheet
- EPEVER
TRACER1210A
Specific References
- MPN
- TRACER1210A
