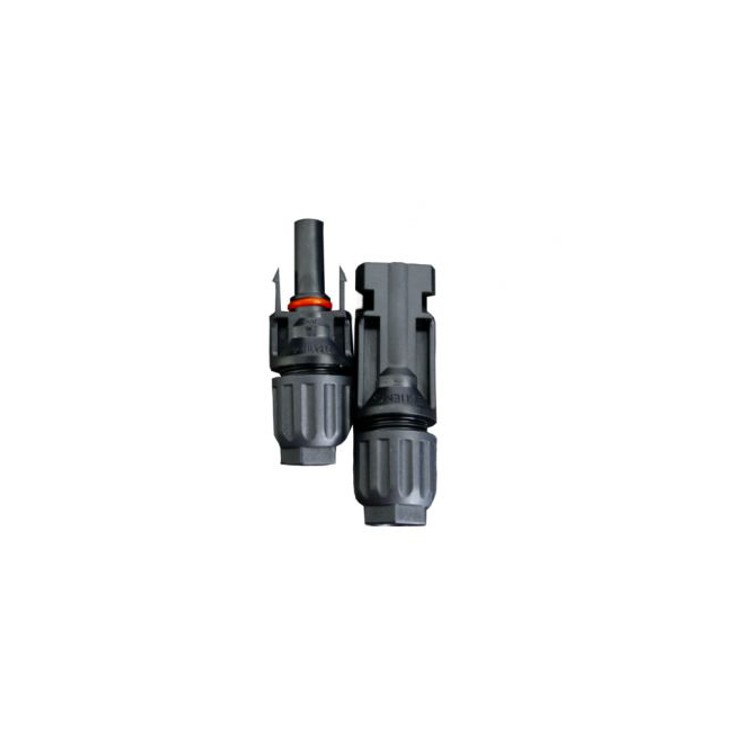

Pair of MC4 type connectors useful for making a quick and safe connection to photovoltaic modules.
The listing includes a male MC4 type connector and a female MC4 type connector, complete with insert, for 2.5-4 mmq cable.
Made of sturdy, UV-resistant material.
TECHNICAL FEATURES
- Rated current: 30A (2.5 - 4.0mm²)
- Rated voltage: max . 1000V ( ICE )
- Degree of protection: IP67
- Protection class / overvoltage: category II
- Class flame retardant: UL94 - V0
- Working temperature: from -40 to +85 ° C
- Temperature maximum: 100 ° C
- Contact material: Copper , plated silver
- Contact Type: snap- in
- Tested according to DIN V VDE 0126-3 / 06.12
Specific References
- EAN13
- 4260558570912
