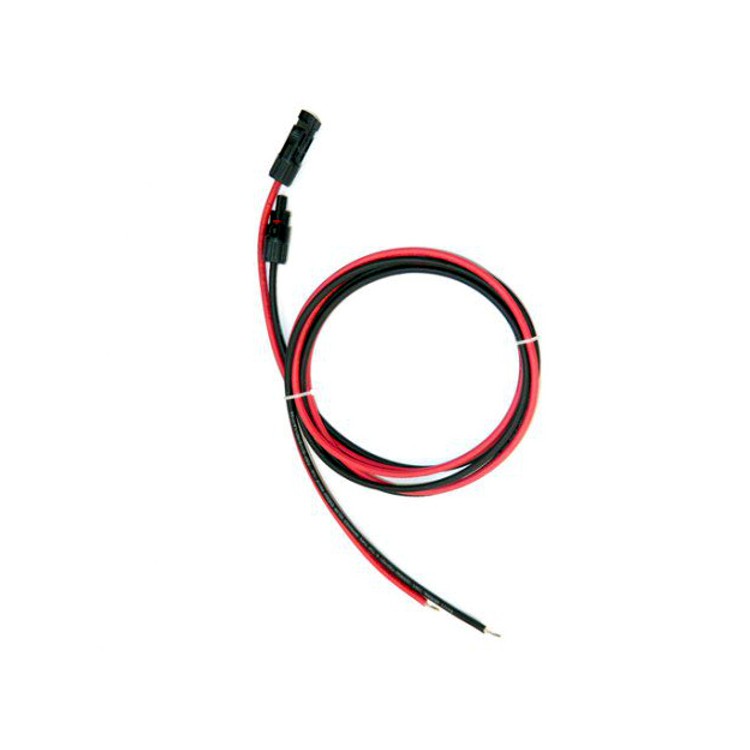

Pair of 5m Red + 5m Black solar cable with 4mm section.
They are flexible cables suitable for installation in photovoltaic systems.
Polymer insulation and halogen-free sheath.
The period of use under normal conditions is 25 years.
They are equipped with MC4 connectors, for a safe and fast electrical connection.
This pair of cables is useful as an extension in cases where the cables supplied with the photovoltaic panels are too short, or to equip solar panels supplied only with the contact box with cables and connectors.
TECHNICAL FEATURES
- Cable length: 5 meters red cable 5 meters black cable
- Section: 4 mm
- Connectors: MC4 1 Male / 1 Female
- Rated voltage: max . 1000V ( ICE )
- Maximum operating temperature : 120° C
- Maximum short circuit temperature : 200°C @ 5s
- Minimum operating temperature: -40°C (without mechanical stress)
- Operating temperature range: -40°C - 90°C
- Cable impedance @ 20°C: 5.09 Ohm/Km
- Maximum external cable diameter: 6.6 mm
Data sheet
- CAVI+MC4-5M
SIMATSHOP
Specific References
- MPN
- CAVI+MC4-5M
3 other products in the same category:
Pair of MC4 type connectors useful for making a quick and safe connection to photovoltaic modules. The listing includes a male MC4 type connector and a female MC4 type connector, complete with insert, for 2.5-4 mmq cable. Made of sturdy,...
Pair of 3m Red + 3m Black solar cables with 4mmq section. They are flexible cables suitable for installation in photovoltaic systems. Polymer insulation and halogen-free sheath. The period of use under normal conditions is 25 years. They are...
Pair of MC4 Y-type connectors with which it is possible to create parallel connections between two photovoltaic panels quickly and safely. The listing offers a Y-connector for 2.5-4 mmq cable. Made of sturdy, UV-resistant material. TECHNICAL...
Customers who bought this product also bought:
FOR SALE ONLY TO VAT NUMBER HOLDERS Sikaflex®-221 300 ml cartridge, colour White This single-component polyurethane sealant is essential both for annually re-sealing our camper's seals such as portholes, roof vents and the most critical joints,...
Sheath diameter 12mm. Weather and UV resistant. Suitable for protecting cables in photovoltaic systems. Diameter for CBE KTR-R fitting. PACKAGE CONTENTS CBE KTG Model No. 1 grey sheath Length = 1m To purchase a greater length, simply enter the...
ACQUATRAVEL SANIGEN PURIFICATION SYSTEM SANITIZING AND HYGIENIZING New Enhanced Formula Single concentrated dose sufficient for the annual cleaning of the tank and clear water pipes. Simply let the product act in the 100 litre tank and let the...
The CSB40/SP separator is used for parallel charging of car and service batteries. It is suitable for 2 batteries max 120Ah 12V. The parallel occurs when the engine is started. In this way the alternator recharges both batteries. At the same time,...

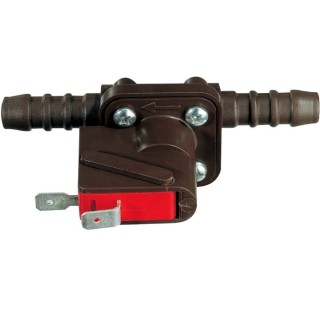

Pressure switch for all submersible or inline water pumps. Thanks to this pressure switch, it is possible to switch off the pump automatically when the pressure in the pipes is too high. Useful when using the pump connected to a tap or in...
