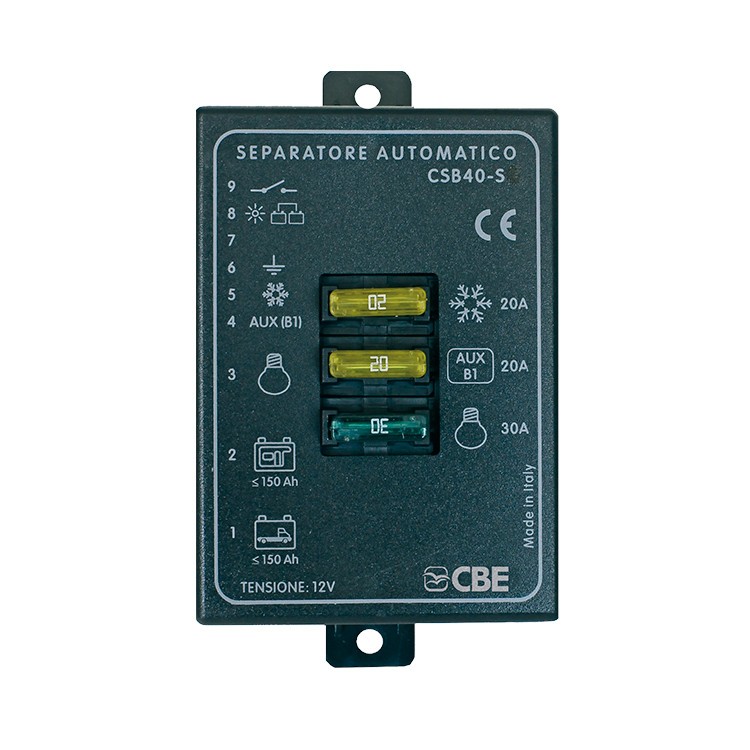

The CSB40/SP separator is used for parallel charging of car and service batteries.
It is suitable for 2 batteries max 120Ah 12V.
The parallel occurs when the engine is started. In this way the alternator recharges both batteries. At the same time, if necessary, the relay that powers the trivalent refrigerator is also energized.
The engine battery charging function is also incorporated inside the separator:
When the service battery is recharged by 230V or by the solar panel, a part of the charge will be transferred to the engine battery (2A).
The following functions are also implemented:
- Output connection of the general positive of 12V users with integrated 30A fuse (connected to the service battery)
- Auxiliary positive output connection (e.g. anti-theft device, step, radio etc.) 12V with integrated fuse (connected to the engine battery)
TECHNICAL INFORMATION
- Power supply voltage: 12Vdc
- Parallel current: 50A-12V
- Current for fridge: 30A-12V
- Fuses: 30A users, 15A fridge, 10A AUX
PACKAGE CONTENTS
- No. 1 CBE CSB40-SP Automatic Battery Separator complete with fuses
- No. 3 Spare fuses
- Fastom for connections
Specific References
- EAN13
- 8033087738605
- MPN
- CSB40-SP
12 other products in the same category:
The PR-4 parallelizer is a device to be connected between the service battery and the engine battery; it allows the latter to be charged regardless of the source ( photovoltaic modules, battery chargers, generators, etc. ) with a current regulated...
MAGNETOTHERMIC DIFFERENTIAL SWITCH 230V 13A CAMPER VAN This 230V differential switch with thermal magnetic circuit breaker is designed for the electrical systems of campers and caravans; it includes 2 protected poles and earth terminals. TECHNICAL...
The SB100 electronic separator has been specifically designed for charging the engine battery (B1) and the service battery (B2) via the engine alternator. An electronic device controlled by the + engine ignition key, inserts the battery parallel...
Boite Relais Securite CBE 205078 Safety relay fitted on Trigano Chausson and Challenger campers TECHNICAL INFORMATION Power supply voltage: 12 Vdc Power connection : M8 screws PACKAGE CONTENTS No. 1 automatic battery separator CBE 205078
CONTROL PANEL WIRING 16 x 0.25 L=6m CBE CP973-6 connection cable for PC100-PC110-PC180-PC200-PC210-PC220-PC320-PC380 camper control unit Length: 6 meters
The CSB96/P separator, unlike the CSB40-SP model, is activated simply by a 12V signal under key (for example stereo power signal), instead of by the D+ signal coming from the alternator. The separator is used for parallel charging of car and...
Replacement control unit CBE 209140 SRX250-3 relays + 3 fuses
QUADRO DISTRIBUZIONE 12V SPECIFICO PER CAMPER TRIGANO
CBE DS304TR quadro di distribuzione, alimentazione da 12 V, con fusibili da 3, 5, 10, 20, 25 e 30 A.
Viene fornito completo di fusibili, connessioni e pin necessari per l'uso in roulotte,...
KIT Cable for CBE water tank probes compatible with PC100 - PC110 - PC180 control units. Length 6 meters.
The SB150 electronic separator has been specifically designed for charging the engine battery (B1) and the service battery (B2) via the engine alternator. An electronic device controlled by the + engine ignition key, inserts the battery parallel...
Replacement electronic separator SB160 specific for PLA vehicles. TECHNICAL INFORMATION Power supply voltage: 12 Vdc Power connection : M8 screws PACKAGE CONTENTS No. 1 CBE SB160 automatic battery separator
AUTOMATIC BATTERY SEPARATOR CSB40/S The CSB40/S separator is used for parallel charging of car and service batteries. It is suitable for 2 batteries max 120Ah 12V. The parallel occurs when the engine is started. In this way the alternator...
Customers who bought this product also bought:
Pair of MC4 Y-type connectors with which it is possible to create parallel connections between two photovoltaic panels quickly and safely. The listing offers a Y-connector for 2.5-4 mmq cable. Made of sturdy, UV-resistant material. TECHNICAL...
NEW MODEL BATTERY CHARGER CBE CB520-3 FOR CAMPERS AND BOATING The CBE CB520-3 switching battery charger ?CB500-3? series is able to charge lead batteries (lead-acid, lead-gel, AGM) on board the camper automatically and with innovative charging...
Pair of 5m Red + 5m Black solar cable with 4mm section. They are flexible cables suitable for installation in photovoltaic systems. Polymer insulation and halogen-free sheath. The period of use under normal conditions is 25 years. They are...

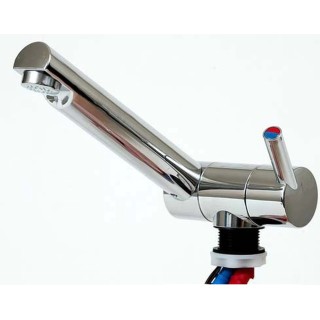

TREND A REICH single-lever mixer tap , modern and elegant, offers a good price /performance ratio . The overall height is only 40 mm and can therefore also be installed in sinks with glass lids. The use of high-quality materials for the TREND A...
