The CSB96/P separator, unlike the CSB40-SP model, is activated simply by a 12V signal under key (for example stereo power signal), instead of by the D+ signal coming from the alternator.
The separator is used for parallel charging of car and service batteries.
It is suitable for 2 batteries max 120Ah 12V.
The parallel occurs when the engine is started. In this way the alternator recharges both batteries. At the same time, if necessary, the relay that powers the trivalent refrigerator is also energized.
Inside the separator, the engine battery charging function is also incorporated:
When the service battery is recharged by 230V or by the solar panel, a part of the charge will be transferred to the engine battery (2A).
The following functions are also implemented:
- Output connection of the general positive of 12V users with integrated 30A fuse (connected to the service battery)
- Auxiliary positive output connection (e.g. anti-theft device, step, radio, etc.) 12V with integrated fuse (connected to the engine battery).
The CSB96/P replaces the older CSB60 model.
TECHNICAL INFORMATION
- Power supply voltage: 12Vdc
- Parallel current: 50A-12V
- Current for fridge: 30A-12V
- Fuses: 30A users, 15A fridge, 10A AUX
PACKAGE CONTENTS
- No. 1 Automatic Battery Separator CBE CSB96/P complete with fuses
- No. 3 Spare fuses
- Fastom for connections
Specific References
- EAN13
- 8033087738667
- MPN
- CSB96/P
12 other products in the same category:
CONTROL PANEL WIRING 16 x 0.25 L=6m CBE CP973-6 connection cable for PC100-PC110-PC180-PC200-PC210-PC220-PC320-PC380 camper control unit Length: 6 meters
Replacement control unit CBE 209140 SRX250-3 relays + 3 fuses
The PR-4 parallelizer is a device to be connected between the service battery and the engine battery; it allows the latter to be charged regardless of the source ( photovoltaic modules, battery chargers, generators, etc. ) with a current regulated...
The SB150 electronic separator has been specifically designed for charging the engine battery (B1) and the service battery (B2) via the engine alternator. An electronic device controlled by the + engine ignition key, inserts the battery parallel...
Boite Relais Securite CBE 205078 Safety relay fitted on Trigano Chausson and Challenger campers TECHNICAL INFORMATION Power supply voltage: 12 Vdc Power connection : M8 screws PACKAGE CONTENTS No. 1 automatic battery separator CBE 205078
The CSB40/SP separator is used for parallel charging of car and service batteries. It is suitable for 2 batteries max 120Ah 12V. The parallel occurs when the engine is started. In this way the alternator recharges both batteries. At the same time,...
Replacement electronic separator SB160 specific for PLA vehicles. TECHNICAL INFORMATION Power supply voltage: 12 Vdc Power connection : M8 screws PACKAGE CONTENTS No. 1 CBE SB160 automatic battery separator
The SB100 electronic separator has been specifically designed for charging the engine battery (B1) and the service battery (B2) via the engine alternator. An electronic device controlled by the + engine ignition key, inserts the battery parallel...
AUTOMATIC BATTERY SEPARATOR CSB40/S The CSB40/S separator is used for parallel charging of car and service batteries. It is suitable for 2 batteries max 120Ah 12V. The parallel occurs when the engine is started. In this way the alternator...
KIT Cable for CBE water tank probes compatible with PC100 - PC110 - PC180 control units. Length 6 meters.
MAGNETOTHERMIC DIFFERENTIAL SWITCH 230V 13A CAMPER VAN This 230V differential switch with thermal magnetic circuit breaker is designed for the electrical systems of campers and caravans; it includes 2 protected poles and earth terminals. TECHNICAL...
QUADRO DISTRIBUZIONE 12V SPECIFICO PER CAMPER TRIGANO
CBE DS304TR quadro di distribuzione, alimentazione da 12 V, con fusibili da 3, 5, 10, 20, 25 e 30 A.
Viene fornito completo di fusibili, connessioni e pin necessari per l'uso in roulotte,...
Customers who bought this product also bought:
Useful flying fuse holder in blister pack for 50A blade fuses. Complete with cable lug. An object that should never be missing for carrying out safe installations in cars, campers, boats and for the installation of photovoltaic kits. PACKAGE...
2-way cable passage kit, for passing cables of solar panels, cameras, antennas, etc., from the roof of the camper, caravan or boat. A safe passage for your cables without the risk of water infiltration. This new roof hatch has a groove on the...
TRANSPARENT LEVELS TUBE 10X14 mm Transparent tube sold by the meter with a diameter of 10 x 14 mm Excellent for use with submersible pumps for transferring tanks, as a fitting for irrigation systems or systems in campers and boats. By purchasing...

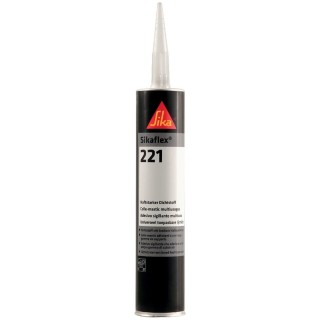

FOR SALE ONLY TO VAT NUMBER HOLDERS Sikaflex®-221 300 ml cartridge, BLACK colour This single-component polyurethane sealant is essential both for annually re-sealing our camper's seals such as portholes, roof vents and the most critical joints,...
12V plug with small diameter 12 connection, to be assembled. The plug is convenient and quick to connect a 12V appliance to the camper or caravan. It has a terminal block connection and therefore a screwdriver will be enough to make the...
EPSOLAR TRACER 2210AN 20A MPPT charge controller uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators. Equipped with built-in multi-function LCD...

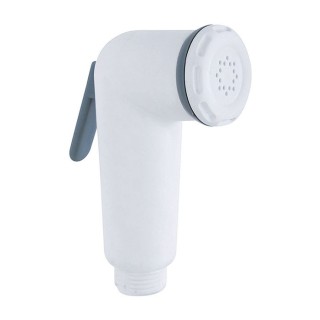

Shower with push button for camper or boat. Also useful in the garden or at home. Thanks to the button on the shower head, you can save a lot of water. By lifting the lever, the shower head will deliver water continuously. TECHNICAL INFORMATION...
