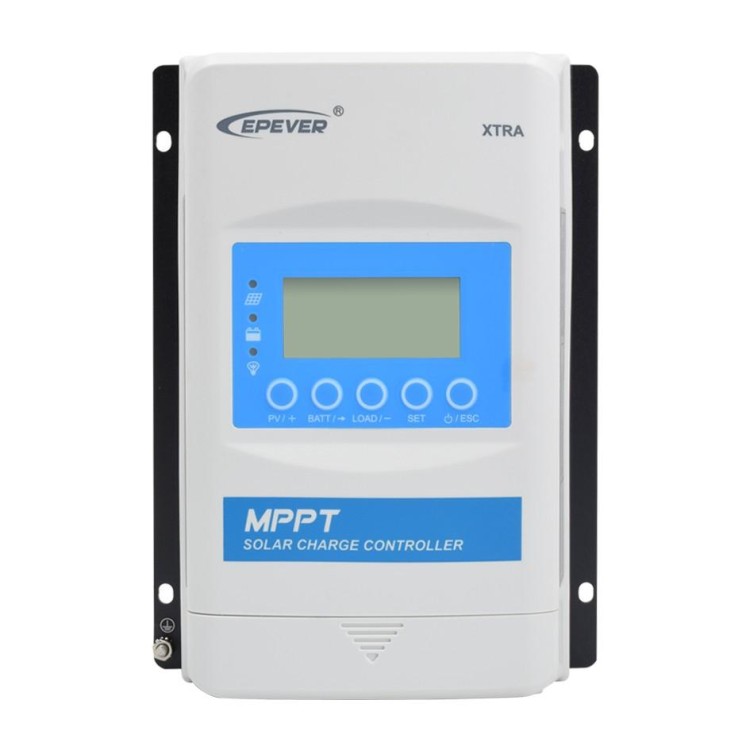

This is the MPPT function which ensures a 30% higher efficiency, compared
to classic charge regulators.
Very high tracking efficiency of the maximum power point, equal to or higher
to 99.5% Thanks to this function the output current is higher than that
produced directly by the photovoltaic panel. In practice the regulator exploits
the voltage jump that is normally present between the photovoltaic panel and the
battery by transforming it into current.
It has an integrated multifunction LCD display and programming keys.
It is therefore simple to navigate the various menus and read the various parameters, such as
panel and battery voltage, current generated, current absorbed by the load etc.
It can work in 12V systems for a maximum panel power of 260W
and in 24V systems for a maximum panel power of 520W, managing one current
total of 20A. The EPSOLAR TRACER MPPT accepts maximum voltage
from the panels, 92V. In this way you can also connect energy bill panels
in 12Vdc or 24Vdc systems. Panels can then be used
not compatible with classic charge regulators in systems for campers and cabins
or boats for example.
FEATURES
Automatic recognition of the 12/24V system voltage
Automatic MPPT (Advance maximum power point tracking) function
Built-in multifunction display
Automatic day/night recognition
DUAL TIMER function allows you to program the number of hours of switching on
a load (e.g. lamps), after sunset and before sunrise.
Possibility of using sealed lead acid batteries (including AGM), batteries
Gel and non-hermetic lead batteries
Uses temperature compensation to correct charging parameters
and discharged, improving battery life
Electronic protection against overload, short circuit, overvoltage and reverse
panel polarity and battery
Large aluminum heatsink
LVD deep discharge battery protection function.
RJ45 interface for connecting the MT-50 Remote Display (optional)
or USB adapter (Optional)
TECHNICAL INFORMATION
Rated voltage: 12VDC/ 24VDC
Maximum battery current: 20A
Battery voltage range: 8-32V
Maximum input voltage: 100V @ -25°C; 92V @ 25°C
Maximum input power: 260W 12V system / 520W 24V system
Self-consumption: ≤35mA @ 12V; ≤22mA @ 24V
RJ45 connector: 8 Pin
Ambient temperature range: -25°C to +50°C
Comp. temperature coefficient:-3mV/
ºC/2V (25 ºC)
IP class: IP32 （indoor use）
Size: 217
x 158 x 56.5 mm
Mounting hole distance: 160 x 149 mm 4 holes
Weight: 0.96 kg
It is possible to combine the MT50 display (optional) with this charge controller
EPsolar, to be able to display voltage and current data in one more location
convenient with respect to where the charge controller can be positioned.
