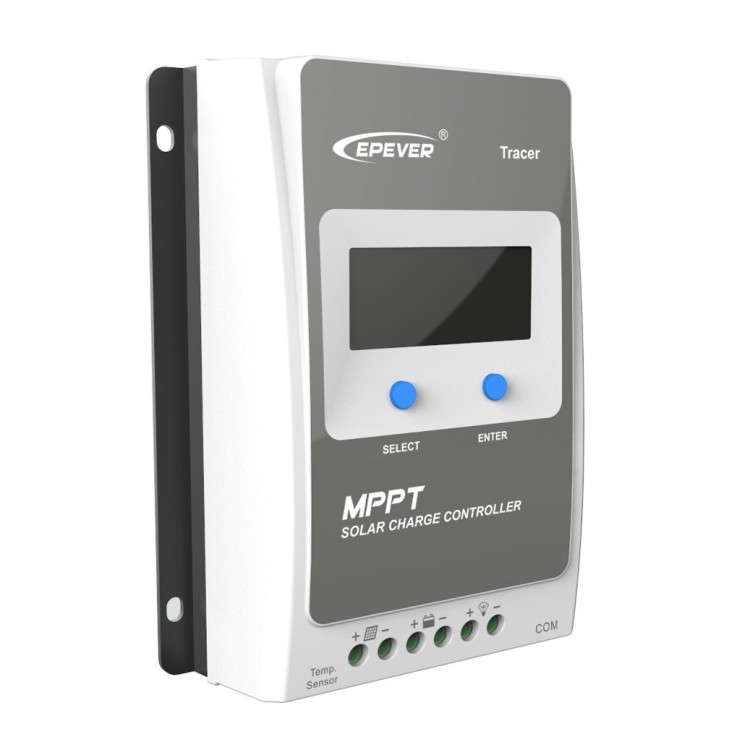

EPEVER TRACER 4210AN 40A MPPT charge controller uses the latest technology for these devices.
This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators.
Equipped with built-in multi-function LCD display.
Thanks to this function, the output current is higher than that produced directly by the photovoltaic panel.
For example the current from the panel may be 8A but the output current may be 10A.
In practice, the regulator exploits the voltage jump that is normally present between the photovoltaic panel (17/18V) and the battery (13/14V), transforming it into current.
It can work in 12V systems for a maximum panel power of 520W and in 24V systems for a maximum panel power of 1040W, managing a total current of 40A.
The TRACER MPPT accepts a maximum voltage from the panels of 100V. In this way, it is also possible to connect energy account panels in 12Vdc or 24Vdc systems.
It will therefore be possible to use panels that are not compatible with classic charge regulators in systems for campers, cabins or boats, for example.
CHARACTERISTICS
- Automatic recognition of 12/24V system voltage
- Automatic MPPT function (Advance maximum power point tracking)
- Automatic day/night recognition
- The DUAL TIMER function allows you to program the number of hours a load (e.g. lamps) stays on, after sunset and before sunrise.
- Possibility of using sealed lead batteries (including AGM), gel batteries and non-sealed lead batteries
- Uses temperature compensation to correct charge and discharge parameters, improving battery life
- Electronic protection against overload, short circuit, overvoltage and reverse polarity of the panel and battery
- LVD function protects the battery from deep discharge.
- Terminals for 10mmq cable
- Possibility to connect a MT-50 remote display
- RJ45 port for RS-485 communication for software upgrade.
- Port for connecting the temperature probe, for measuring the temperature of the batteries.
TECHNICAL INFORMATION
- Rated voltage: 12VDC/ 24VDC
- Maximum battery current: 40A
- Maximum load output current: 40A
- Maximum battery voltage: 32V
- Maximum Input Voltage: 100Vdc
- Maximum input power: 520W 12V system / 1040W 24V system
- Self-consumption: ?16mA (24V)
- RJ45 Connector: 8 Pin RS485
- Ambient Temperature Range: -25°C to +45°C
- Temperature compensation coefficient: -3mV/?/12V(25? ref)
- IP Class: IP30 (indoor use)
- Dimensions: 252x180x63 mm
- Terminals: 16mmq
- Weight: 1.9kg
This charge controller can be combined with the EPsolar MT50 display, to view data more conveniently if the controller is positioned in a difficult to access area.
Specific References
- EAN13
- 4260558570455
