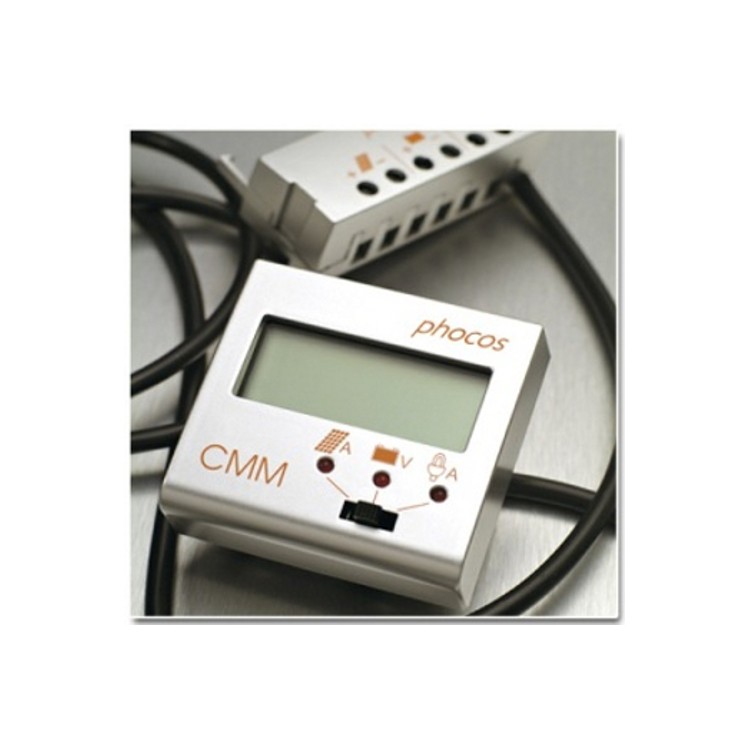

The CMM remote display connected to the Phocos CA CML and CMLNL series charge controllers allows you to view:
- Current produced by the photovoltaic panel
- Battery voltage
- Current absorbed by the load (e.g. light bulbs)
The display shows the values on 3 digits and at the same time, the LED indicating which measurement has been selected via the appropriate selector will remain on.
The display is designed for wall or DIN rail mounting.
The supplied cable is 2 meters long for easy and convenient installation.
TECHNICAL INFORMATION
- Voltage: 0 to 35V
- Current: 0 to 25A
- Temperature: -25 to +50°C
- Cable length: 2m
- Dimensions of the measuring terminal block: 84 x 44 x 32 mm
- Display Size: 72 x 68 x 29 mm
- Weight: 195gr including cable
- Protection: IP22 (indoor use)
- CE and RoHS certified
Specific References
- EAN13
- 4260028545587
- MPN
- CMM
