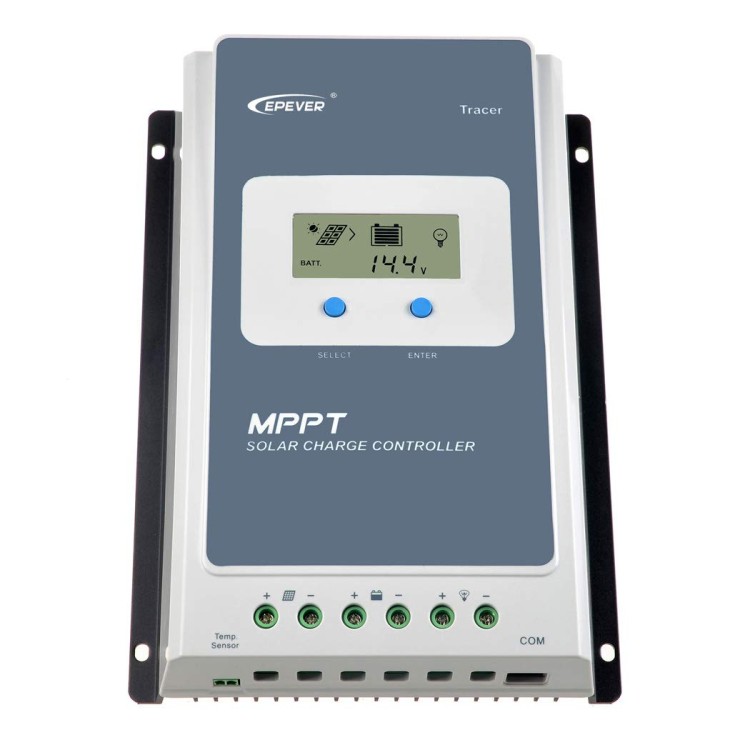

MPPT charge controller with display EPSOLAR TRACER 3215AN 30A uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators. Thanks to this function, the output current is higher than that produced directly by the photovoltaic panel. For example, the current from the panel may be 8A but the output current to the battery may reach 10A. In practice, the regulator exploits the voltage jump that is normally present between the photovoltaic panel (17/18V) and the battery (13/14V), transforming it into current. It can work in 12V systems for a maximum panel power of 390W and in 24V systems for a maximum panel power of 780W, managing a total current of 30A. The TRACER MPPT accepts a maximum voltage from the panels of 100V. In this way, it is also possible to connect energy account panels in 12Vdc or 24Vdc systems. It will therefore be possible to use panels that are not compatible with traditional charge regulators in systems for campers, cabins or boats.
CHARACTERISTICS
Automatic recognition of 12/24V system voltage
Automatic MPPT function (Advance maximum power point tracking)
Automatic day/night recognition
The DUAL TIMER function allows you to program the number of hours a load (e.g. lamps) is switched on, after sunset and before sunrise.
Possibility of using sealed lead batteries (including AGM), gel batteries and non-sealed lead batteries
Uses temperature compensation to correct charge and discharge parameters, improving battery life
Electronic protection against overload, short circuit, overvoltage and reverse polarity of the panel and battery
LVD function protects the battery from deep discharge
RS485 interface for connecting the MT-50 Remote Display (optional)
Terminals for 10mmq cable.
TECHNICAL INFORMATION
Rated voltage: 12VDC/ 24VDC
Maximum battery current: 30A
Maximum load output current: 30A
Maximum battery voltage: 32V
Maximum Input Voltage: 150Vdc
Maximum input power: 390W 12V system / 780W 24V system
Self-consumption: ?12mA
RS485 connector: 5VDC/100mA
Grounding: Common negative.
Night detection threshold: 5V (12V system) 10V (24V system)
Day detection threshold: 6V (12V system) 12V (24V system)
Ambient Temperature Range: -35°C to +55°C
Temperature compensation coefficient: -30mV/?/12V(25? ref)
IP Class: IP30 (indoor use)
Dimensions: 228x164x55 mm
Mounting hole spacing: 170x155mm 4 slots 5x7mm
Terminals: 16mmq
Weight: 1.26kg
This charge controller can be combined with the EPsolar MT50 display, to be able to view the voltage and current data of the panel, battery and load in a more convenient place than where the regulator can be installed.
