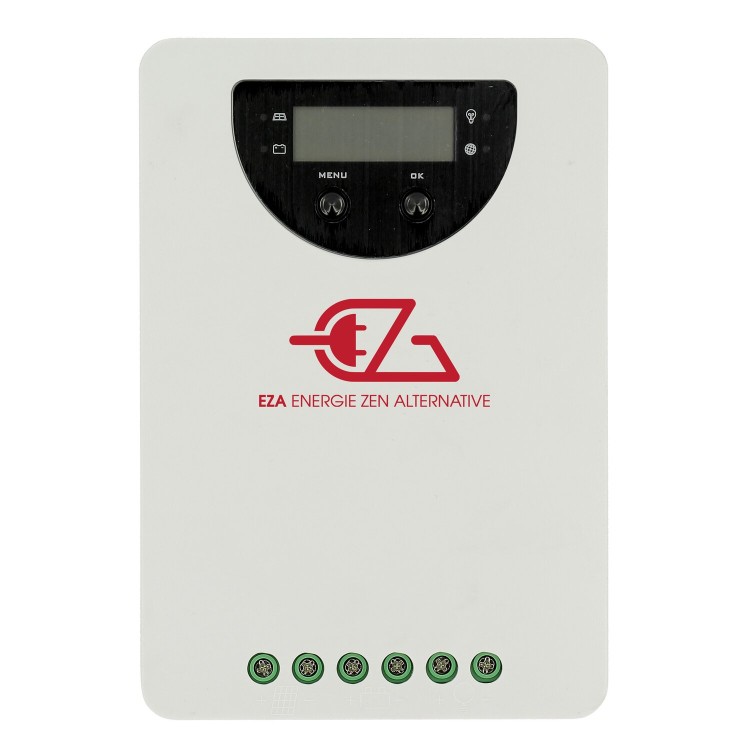

EZA MPPT 40A Twilight Solar Photovoltaic Bluetooth charge controller.
Get the most out of your solar system thanks to automatic adjustment of the maximum power point.
Whether you wish to equip your leisure vehicle with one or more solar panels, or you already have one, a solar charge controller is necessary to complete your photovoltaic installation. The Eza brand offers a complete range of solar charge controllers equipped with MPPT technology, which is the most efficient technology available today. MPPT (Maximum Power Point Tracking) technology allows the solar panel to operate at its optimal voltage to obtain maximum power. This means that the voltage and current produced by the solar panel(s) change based on light levels throughout the day. On average, MPPT technology is 30% more efficient than conventional PWM technology. 40A solar charge regulator with 6 output wires. Equipped with Bluetooth, with which you can monitor and control the various data of your regulator (voltage, current, etc.) via the smartphone application designed specifically for this range of regulators: My E-Solar.
TECHNICAL INFORMATION:
MaxE load current: 20A (12 or 24V) A
Maximum power panel(x): 520 / 1040 W
Compatible battery type: Acid / AGM / Gel / Lithium
Technology: MPPT
Rated voltage: 12/24V DC V
Open circuit voltage: 90 V
Low voltage disconnection/reconnection: 10.8 / 12.6 V
Floating voltage / high voltage disconnect: 13.8 / 16 V
No-load consumption: < 12 mA
Communication mode: LCD display
Bluetooth : Yes
Surge protection: Yes
Reverse polarity protection: Yes
Short circuit protection: Yes
Protection against overheating: Yes
Type of packaging: ABS / ALU
Mounting type: VIS
DC connection: To be wired 16mm2
Product Dimensions (L x W x H): 196.5 x 136.6 x 67.1 mm
