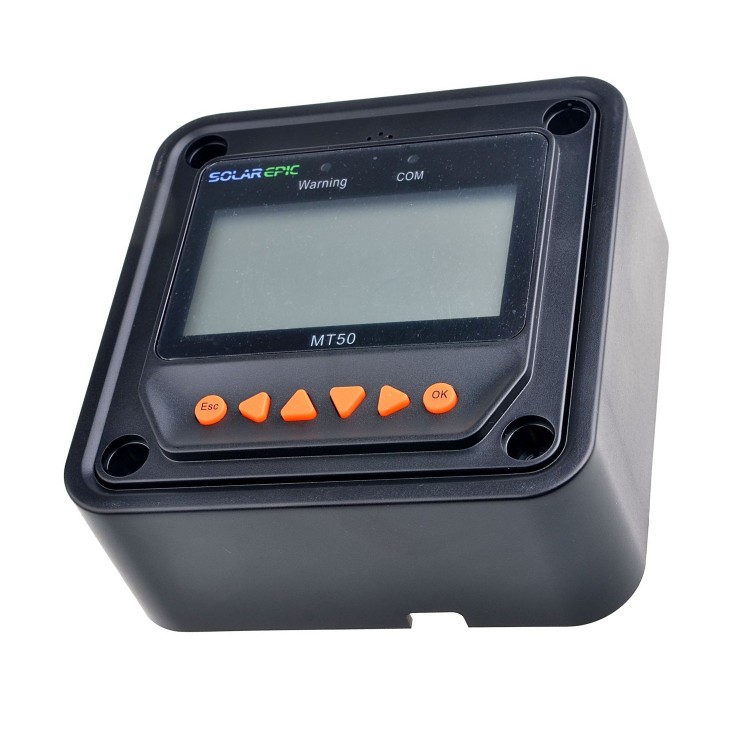

EPSOLAR MT50 Backlit LCD Display Voltmeter Ammeter for EPSOLAR LSxxxxB(P) VSxxxxBN TracerxxxxBN(P) Series Charge Controller
The display indicates:
- the voltage and current generated by the panel;
- the battery voltage;
- the voltage applied and current absorbed by the load;
- percentage of capacity stored by the battery;
- battery charge status.
In addition to these measurements, the operating mode of the charge controller can be programmed via the display.
For example, it is possible to set the TWILIGHT function and modify the various parameters such as the load connection and disconnection voltage (lamps, etc.).
You can also set a timer to turn the lights on and off at a specific time.
There are also two LED indicators that respectively warn of a connection problem with the device (Warning) and the connection status with the charge regulator (COM).
It is equipped with 6 buttons to easily move through the menu.
Using the buttons you can change various parameters:
- battery capacity,
- battery technology (Lead, Gel, AGM)
- battery temperature coefficient
etc..
TECHNICAL INFORMATION:
- MT50 Black Backlit LCD Display
- Cable supplied: 2 meters with 8-pin RJ45 connectors
- Self-consumption: <17mA with LCD and LED off; <23 mA with LCD and LED on
- Operating temperature: -15 to +40°C
- Dimensions: 114 x 114 x 32.7 mm
- Hardware: 4 Wall plugs with screws ST4.2X32
- 4 M4X8 screws for fixing the display to the wall spacer
- 4 White screw caps.
16 other products in the same category:
EZA MPPT 40A Twilight Solar Photovoltaic Bluetooth charge controller.
Get the most out of your solar system thanks to automatic adjustment of the maximum power point.
Whether you wish to equip your leisure vehicle with one or more solar...
The Phocos BCM is an innovative charger for AA batteries. It charges at constant current and limits the voltage to avoid overcharging the batteries. It is possible to charge batteries of different capacities and from different manufacturers, as...
MPPT charge controller with display EPSOLAR TRACER 3215AN 30A uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators. Thanks to this function, the...
EXTERNAL TEMPERATURE SENSOR FOR EPEVER EPSOLAR CHARGE CONTROLLER The temperature sensor is connected to the charge controller and applied to the battery. This allows the sensor to transmit the exact battery temperature to the charge controller....
SOLAR REGULATOR MPPT 10A Waterproof IP67 Every solar installation needs a solar charge controller. As the name suggests, this device regulates the solar charge created by your photovoltaic panel to optimize performance and protect your battery....
NV-1024 YJSS10 CHARGE REGULATOR Campers and campers are increasingly demanding and want all the comforts of home even on vacation. The number of light points and electrical and electronic systems on board has increased exponentially. Televisions,...
EPSOLAR TRACER1210AN 10A MPPT charge controller uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators. Very high maximum power point tracking...
The CMM remote display connected to the Phocos CA CML and CMLNL series charge controllers allows you to view: Current produced by the photovoltaic panel Battery voltage Current absorbed by the load (e.g. light bulbs) The display shows the values...
VECHLINE CHARGE REGULATORS - PWM 10A 12/24 V Intelligent charge controller with automatic switch 12/24V. User-friendly LCD screen. PWM technology to ensure optimal charging by increasing battery life. Four working modes available. Suitable for...
New EPEVER GoMate GM3024N 12/24V - 30A charge controller. It is possible to set the type of battery used (GEL, lead, AGM). Technical Information Model: Epever GoMate GM3024N
Battery input voltage range: 8V-32V
Rated current: 30A...
MICRO USB-USB FEMALE ADAPTER FOR EPEVER EPSOLAR CHARGE REGULATOR The Micro USB adapter allows you to connect EPEVER (EPSolar) charge controllers to your Smartphone for easy monitoring and programming. Technical information: Model: CC-OTG-12
CBE PRS300 charge regulator kit with CBE PT642 display. THE PRS300 PHOTOVOLTAIC MODULE REGULATOR is designed and built with innovative electronic techniques that allow maximum performance of the photovoltaic modules connected to it. The regulator...
TEMPERATURE SENSOR FOR EPEVER EPSOLAR CHARGE CONTROLLER The temperature sensor is connected to the charge controller and applied to the battery. This allows the sensor to transmit the exact temperature of the battery to the charge controller. This...
SOLAR REGULATOR LCD PWM 10A PWM Smart Pulse solar controllers enable the safe operation of small power solar panels (up to 130W). They effectively protect batteries from overvoltage, deep discharge, short circuits, voltage spikes and sulfation....
EPEVER TRACER 4210AN 40A MPPT charge controller uses the latest technology for these devices. This is the MPPT function that ensures 30% higher efficiency compared to traditional charge regulators. Equipped with built-in multi-function LCD...
MPPT SOLAR REGULATOR 10A Bluetooth Waterproof IP67 Get the most out of your solar system with automatic maximum power point adjustment. Battery charge status consideration. LED operation indicators. Watertight product, therefore usable in all...
Customers who bought this product also bought:

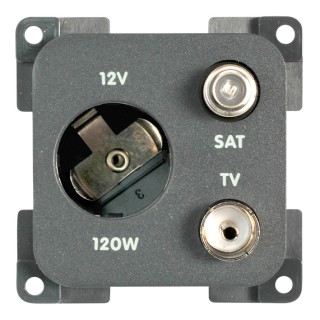

12V cigarette lighter socket + TV socket + satellite socket. Convenient to have all the connections for the TV in one place. This socket can be combined with CBE frames. PACKAGE CONTENTS Brand: CBE Model: MP12ATVS/G TV Connector: 9.5 75ohm SAT...
