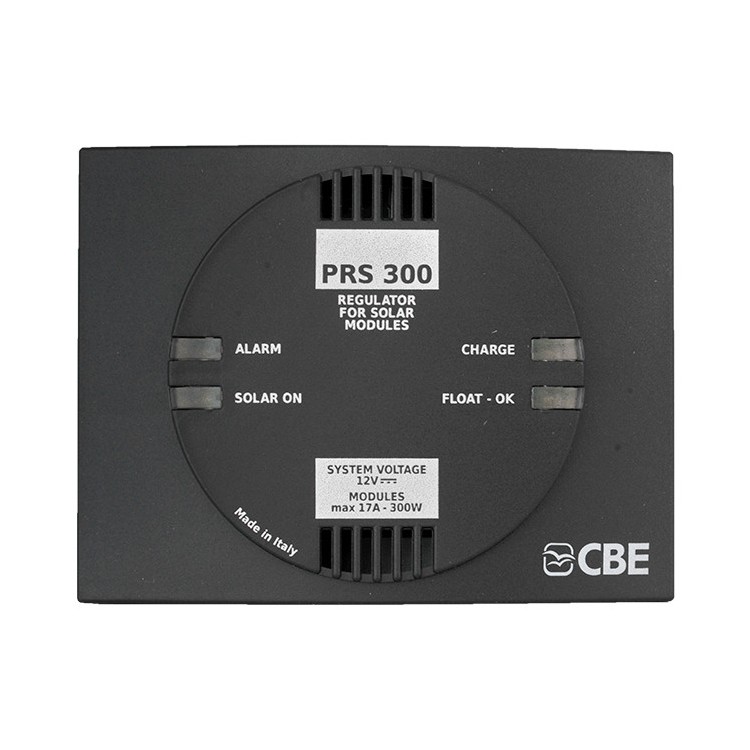

The CBE PRS300 PHOTOVOLTAIC MODULE REGULATOR is designed and built with innovative electronic techniques that allow maximum performance of the photovoltaic modules connected to it.
The regulator is suitable for connecting 12V photovoltaic modules up to a maximum total power of 300W and is designed for connecting the CBE PT642 test panel required for checking the charging of the photovoltaic modules and the battery voltage.
The PRS300 is able to charge lead-gel, lead-acid, AGM and lithium batteries (with integrated electronics), using the appropriate charging line (selectable with the switch located inside the regulator).
A desulfation function is provided which activates automatically when the battery requires this process.
The device has 4 LEDs for signalling:
- Battery charging phase with maximum current until the end-of-charge voltage is reached.
- Constant voltage maintenance phase.
- Incorrect electrical connection alarm.
- Regulator on (in the absence of sunlight the regulator switches off automatically).
High electrical efficiency and very low heat dissipation characterize the PRS300.
TECHNICAL INFORMATION:
- Model: PRS300
- Recommended photovoltaic module power: 300 Watt Max
- Photovoltaic input number: 2
- Rated voltage: 12V
- Auto power off: in the absence of sunlight
- Maximum voltage: 14.3V (Pb-Gel) 14.1V (Pb-Acid) 14.7 (AGM and Lithium)
- Float voltage: 13.8V (Pb-Gel) 13.5V (Pb-Acid) 13.8V (AGM and Lithium)
- Battery desulfation: Yes
- Reverse current blocking device: Electronic
- Dimensions: 115 x 88 x 37 mm
- Weight: 120gr
Can be combined with the CBE PT642 multifunction display
Specific References
- EAN13
- 8033123264723
- MPN
- PRS300
