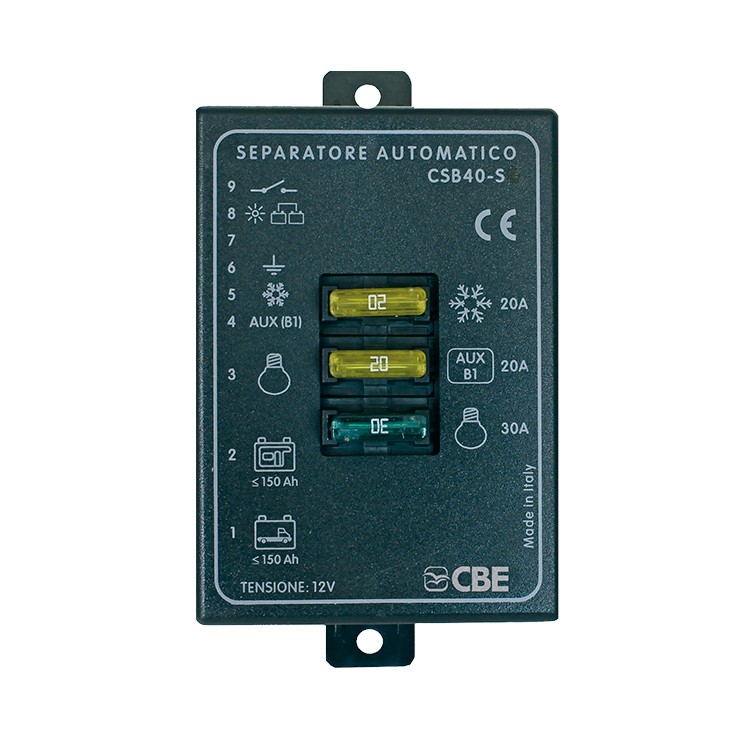

The CSB40/S separator is used for parallel charging of car and service batteries. It is suitable for 2 batteries max 120Ah 12V. The parallel occurs when the engine is started. In this way the alternator recharges both batteries. At the same time, if necessary, the relay that powers the trivalent refrigerator is also excited. The engine battery charging function is also incorporated inside the separator: when the service battery is recharged by 230V or by the solar panel, part of the charge will be transferred to the engine battery (2A).
The following functions are also implemented:
Output connection of the general positive of 12V users with integrated 30A fuse ( connected to the service battery )
Auxiliary positive output connection ( e.g. anti-theft, step, radio etc. ) 12V with integrated fuse ( connected to the engine battery )
DATA SHEET
Manufacturer: CBE
Model: CSB40/S
Power supply voltage: 12 Vdc
Parallel current: 50A-12V
Current for fridge: 30A-12V
Fuses: 30A users, 15A fridge, 10A Aux
Dimensions: 130 x 80 x 40 mm
PACKAGE CONTENTS
No. 1 CBE CSB40-S Automatic Battery Separator complete with fuses
