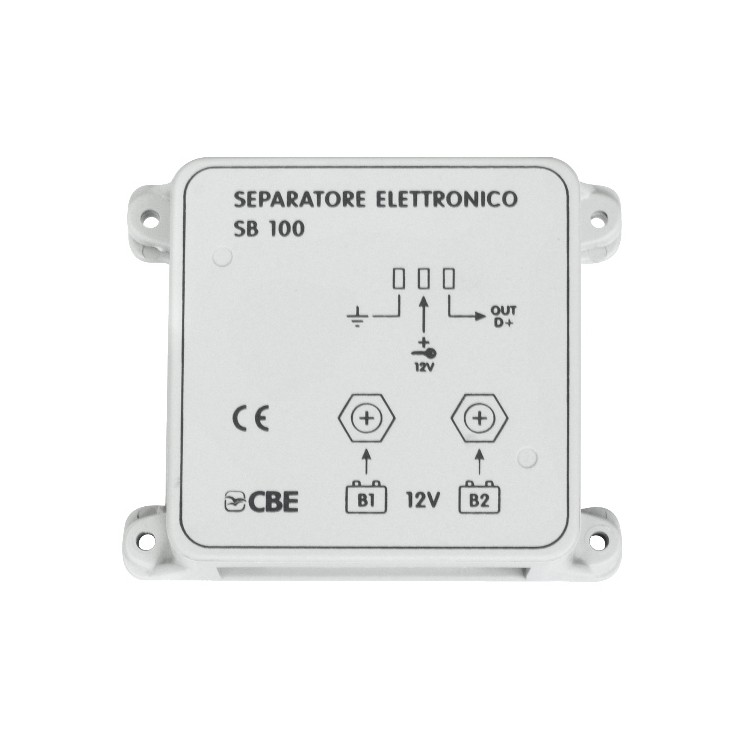

The SB100 electronic separator has been specifically designed for charging the engine battery (B1) and the service battery (B2) via the engine alternator. An electronic device controlled by the + engine ignition key, inserts the battery parallel with battery voltage > 13V and disconnects it with the ignition key off or with B1 voltage < 12V.
TECHNICAL INFORMATION
Power supply voltage: 12 Vdc
Parallel relay: 70A max
Power connection : M8 screws
PACKAGE CONTENTS
No. 1 CBE SB100 automatic battery separator
No. 2 rope ends
No. 1 connector for ground, signal input and signal output
