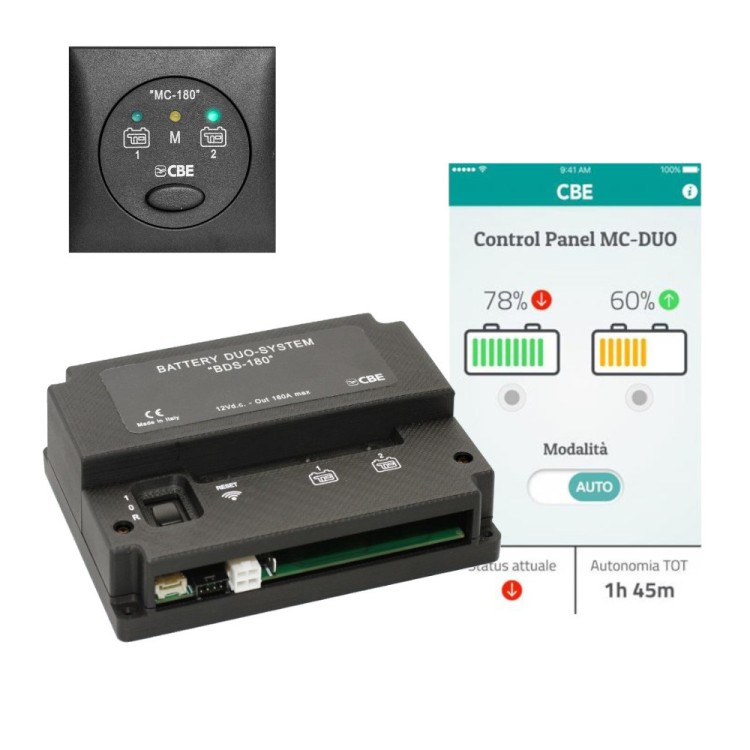

KIT COMPRISING THE CBE BDS-180 BATTERY SWITCH AND CBE MC-180 REMOTE CONTROL
Automatic service battery selector
The BATTERY DUO-SYSTEM is an electronic device with an integrated microprocessor capable of intelligently managing two 12 V service batteries, both in the charging phase (with alternator, battery charger and photovoltaic modules) and in the discharging phase.
Using the BDS-180 has several advantages:
- management of battery charging and discharging separately and alternately
- possibility of connecting two batteries of different capacity and different age
- checking the functionality of each individual battery and, in the event of a faulty battery, isolating it with a light signal (yellow LED on the BDS-180)
- ?battery saver? function, which disconnects the batteries when a certain amount of power is reached
safety voltage to avoid irreversible damage - possibility of electrically disconnecting both service batteries (in case of prolonged periods of non-use) using the switch located on the appliance or via a remote switch
- management of high currents (charging and discharging) up to a maximum of 90A with 120A peaks for each battery
- possibility of connecting utilities with consumption up to a maximum of 180A
- possibility of connecting a control panel (MC-180) for selecting the operating mode of the equipment (automatic/manual)
- possibility of connection to mobile devices via the APP ?REMOTE CONTROL BDS-180?
Control panel for Battery Duo-System 180
Remote control panel for selecting the operating mode of the BDS-180.
MANUAL: the user can choose which battery to use, both in the charging and discharging phases.
AUTOMATIC: The service batteries are charged or discharged automatically according to the algorithm of the microprocessor integrated in the ?BDS-180?.
The panel is equipped with LEDs to display the battery used and to signal a possible faulty battery.
The package is complete with the connection cable to the ?BDS-180? L=6 m and the ?BAC1? frame.
The panel can be combined with the ?MODULAR PLATES? series.
Built-in version, dimensions 60 x 60 mm.
4 other products in the same category:
Current Distributor for Lithium Batteries CBE CSB3-LT Camper Engine Services Device for charging the engine battery, both from the solar panel and from the battery charger, via the service battery. Thanks to the charge distributor, from today you...
REMOTE CONTROL PANEL MC-180 FOR Battery Duo-System 180 Remote control panel for selecting the operating mode of the BDS-180. MANUAL: the user can choose which battery to use, both in the charging and discharging phases. AUTOMATIC: The service...
Battery Power Distributor CBE CSB3 Camper Engine Services Device for charging the engine battery, both from the solar panel and from the battery charger, via the service battery. Thanks to the charge distributor, from today you can recharge the...
NEW COMING IN APRIL 2025
The battery duo-system is an electronic device with integrated microprocessor capable of intelligently manage two 12 V lead acid service batteries, gel, AGM and lithium, both in the charging phase (with alternator,...
Customers who bought this product also bought:
CBE PRS300 charge regulator kit with CBE PT642 display. THE PRS300 PHOTOVOLTAIC MODULE REGULATOR is designed and built with innovative electronic techniques that allow maximum performance of the photovoltaic modules connected to it. The regulator...

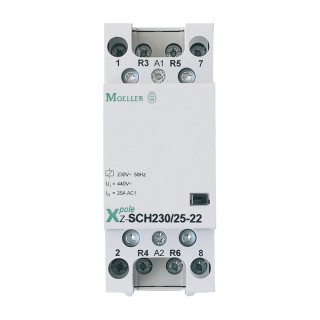

230V 20A exchange relay useful for managing the 220V network on board the camper or caravan or in photovoltaic systems. With this product you can manage the voltage exchange between the grid and the generator or between the grid and the inverter...
