NEW COMING IN APRIL 2025

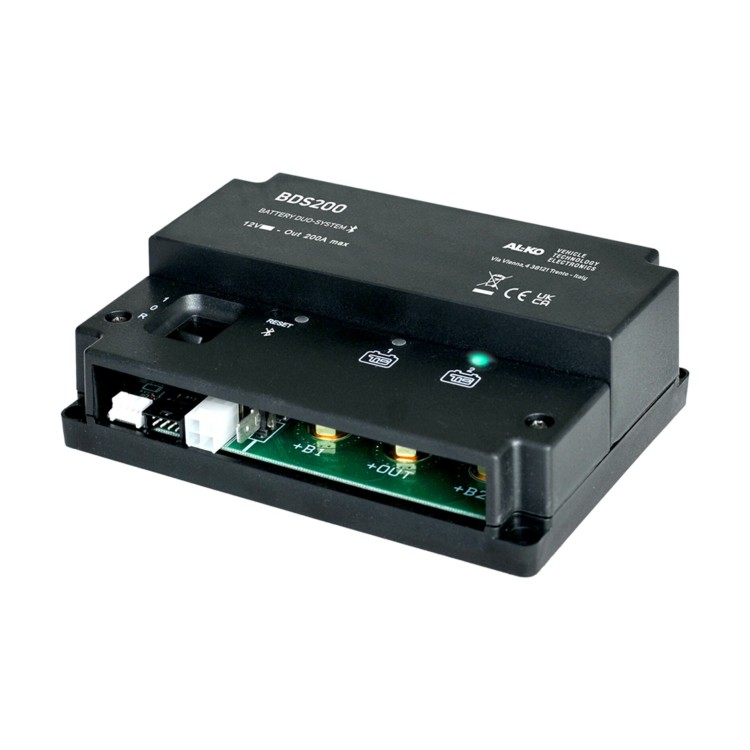

The battery duo-system is an electronic device with integrated microprocessor capable of intelligently manage two 12 V lead acid service batteries, gel, AGM and lithium, both in the charging phase (with alternator, charging batteries and photovoltaic modules) and in the discharge phase.
Using the BDS200 brings numerous advantages:
- management of charging and discharging batteries separately and alternately
- possibility of connecting two batteries of different capacities and different ages
- checking the functionality of each individual battery and, if necessary faulty battery, isolation of the same with light signal (led yellow on the BDS200)
- “battery saver” function, which disconnects the batteries from the reaching a safety voltage to avoid the irreversible damage
- possibility of electrically disconnecting both batteries service (in case of prolonged periods of non-use) using the switch located on the appliance or via a remote switch
- management of high currents (charge and discharge) up to a maximum of 100A with peaks of 120A for each battery
- possibility of connecting users with consumption up to a maximum of 200A
- possibility of connecting a control panel (MC-180) for the selection of the equipment operating mode (automatic/manual)
- possibility of connection to mobile devices via the “ONDA SMART SYSTEM” APP
- Dimensions (mm): 150 x 110 / h 48
- Color: Black
APP - ONDA SMART SYSTEM
The “ONDA SMART SYSTEM” APP for mobile devices has been developed specifically to manage and expand the functions of the BDS200. The connection between the BDS200 and mobile devices occurs via blue-tooth and has a limited range of action around the vehicle.
THE “ONDA SMART SYSTEM” APP allows you to:
- select the BDS200 operating mode (automatic/manual)
- display the voltage of the two batteries graphically and in volts
- view the charging and discharging current in real time
- view the remaining battery life in use
- display the number of charge and discharge cycles of the two batteries
- view the “battery saver” function intervention signal
- view the battery state of charge (SoC)
- view the battery health status (SoH)
- receive information on any anomalies in the batteries
- view the BDS200 manual
- update the BDS200 firmware
Specific References
- EAN13
- 8033123268479
