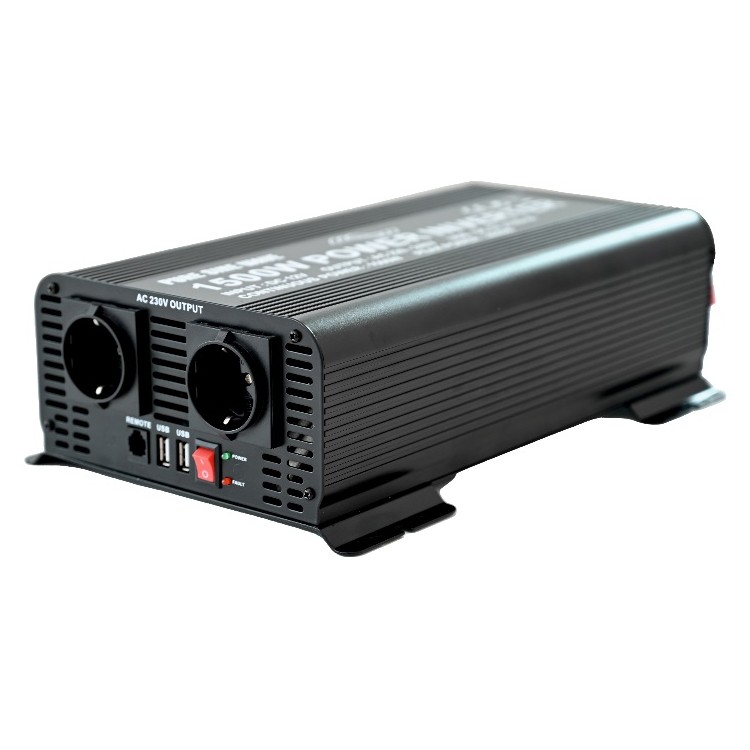

CBE Inverter ERP1500 12V/230V with Pure Sine Wave 1500W
The new ?ERP? series inverters, with pure sine wave output, specifically designed for use in campers and cars, are characterised by high performance, construction quality, maximum safety and reliability.
Main features and functions:
Pure sine wave output, to maximize the efficiency of powered devices and especially recommended for sensitive 230V appliances, such as audio and video equipment, laptops, satellite systems, appliances and household appliances with electric motors, etc.
Complete with USB Type A port.
Reduced size and weight thanks to HF technology.
High quality and sturdy construction with aluminum alloy casing.
Electrical isolation between 12Vdc input and 230Vac output.
?Smart? cooling fan controlled according to load and temperature.
Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity.
Provision for connection of remote control panel.
TECHNICAL INFORMATION:
CODE: 215481
OUTPUT TECHNICAL DATA NO LOAD VOLTAGE: 230Vac±10% LOAD VOLTAGE: 210÷240Vac FREQUENCY: 50HZ STARTING POWER: 3000W CONTINUOUS POWER: 1500W OUTPUT WAVEFORM: Pure sine (THD < 5%) SHORT CIRCUIT PROTECTION: YES OVERLOAD PROTECTION: 1550÷1800W
TECHNICAL INPUT DATA WORKING VOLTAGE: 11÷15Vdc NO LOAD CURRENT: ? 1.3A LOW VOLTAGE ALARM: 10.5Vdc LOW VOLTAGE PROTECTION: 9.5Vdc HIGH VOLTAGE PROTECTION: 16Vdc REVERSE POLARITY: Yes (fuse)
GENERAL TECHNICAL DATA YIELD: ? 85% VENTILATION Forced, automatic variable regulation WORKING TEMPERATURE: -15° ÷ +25°C; 60°C at 40% load OVERTEMPERATURE PROTECTION: YES 230V CONNECTION: Schuko socket CONNECTION TO THE BATTERY: Terminals USB OUTPUT: 2x USB Type A DIMENSION (mm): 375 x 210 x 100H WEIGHT: 3.9Kg INTEGRATED IVT FUNCTION: No
