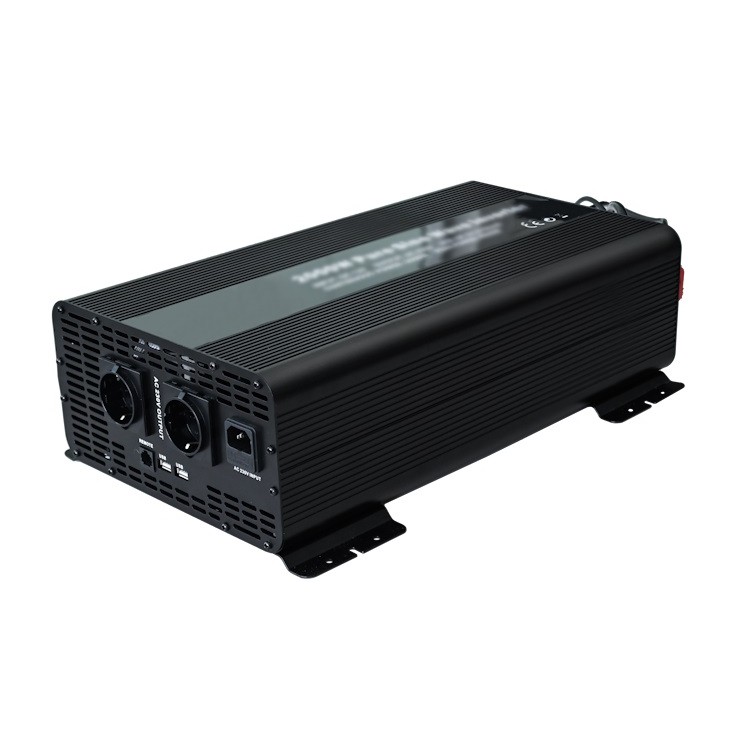

CBE Inverter ERP2000 IVT Pure Wave 2000W with generator mains relay
  • CBE Inverter ERP2000 IVT Pure Wave 2000W with generator mains relay

CBE Inverter ERP2000 IVT Pure Wave 2000W with generator mains relay

539.00
Tax included
2586
8033123268066
Quantity
Add to wishlist

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

New
2586

Data sheet

2586
CBE

CBE Inverter ERP2000IVT 12V/230V with Pure Sine Wave 2000W

The new ?ERP? series inverters, with pure sine wave output, specifically designed for use on campers and cars, are characterised by high performance, quality, safety and reliability.

Main features and functions:
Pure sine wave output, to maximize the efficiency of powered devices and especially recommended for sensitive 230V appliances such as audio and video equipment, laptops, satellite systems, appliances and household appliances with electric motors, etc.
Complete with USB Type-A port.
Reduced size and weight thanks to HF technology.
High quality aluminum.
Electrical isolation between 12Vdc input and 230Vac output.
?Smart? cooling fan controlled according to load and temperature.
Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity
Provision for connection of remote control panel.

The model is equipped with an intelligent system that automatically disconnects the battery when the vehicle is connected to the 230V network.

Technical information:

CODE: 215483

INVERTER: ERP2000-IVT
OUTPUT TECHNICAL DATA
NO LOAD VOLTAGE: 230Vac±10%
LOAD VOLTAGE: 210÷240Vac
FREQUENCY: 50Hz
STARTING POWER: 4000W
CONTINUOUS POWER: 2000W
OUTPUT WAVEFORM: Pure sine (THD < 3%)
SHORT CIRCUIT PROTECTION: YES
OVERLOAD PROTECTION: 2050÷2250W

TECHNICAL INPUT DATA
WORKING VOLTAGE: 11÷15Vdc
NO LOAD CURRENT: ? 1.6A
LOW VOLTAGE ALARM: 10.5Vdc
LOW VOLTAGE PROTECTION: 9.5Vdc
HIGH VOLTAGE PROTECTION: 16Vdc
REVERSE POLARITY: Yes (fuse)
TECHNICAL DATA INPUT: «MAINS MODE»
WORKING VOLTAGE: 230Vac±10%
FREQUENCY: 50HZ
INPUT PROTECTION: 15A Fuse
AC SWITCHING (INVERTER/ MAINS MODE) ? 100ms


GENERAL TECHNICAL DATA
YIELD: ? 85%
VENTILATION: Forced, automatic variable regulation
WORKING TEMPERATURE: -15° ÷ +25°C; 60°C at 40% load
OVERTEMPERATURE PROTECTION: YES
CONNECTION 230V 2x Schuko socket
CONNECTION TO THE BATTERY Terminals
USB OUTPUT 2x USB Type A
DIMENSION (mm): 458 x 287 x 142H
WEIGHT: 7.6 Kg
INTEGRATED IVT FUNCTION: YES
