1 - EZA Inverter 2000W Pure Wave and Charger 12V 230V MPS Camper Van Lithium
  • 1 - EZA Inverter 2000W Pure Wave and Charger 12V 230V MPS Camper Van Lithium

EZA Inverter 2000W Pure Wave and Charger 12V 230V MPS Camper Van Lithium

3048
425.00
Tax included delivery in 5-7 days
Quantity
Last items in stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Maximum Autonomy and Simplicity: The Energy Heart of your Vehicle

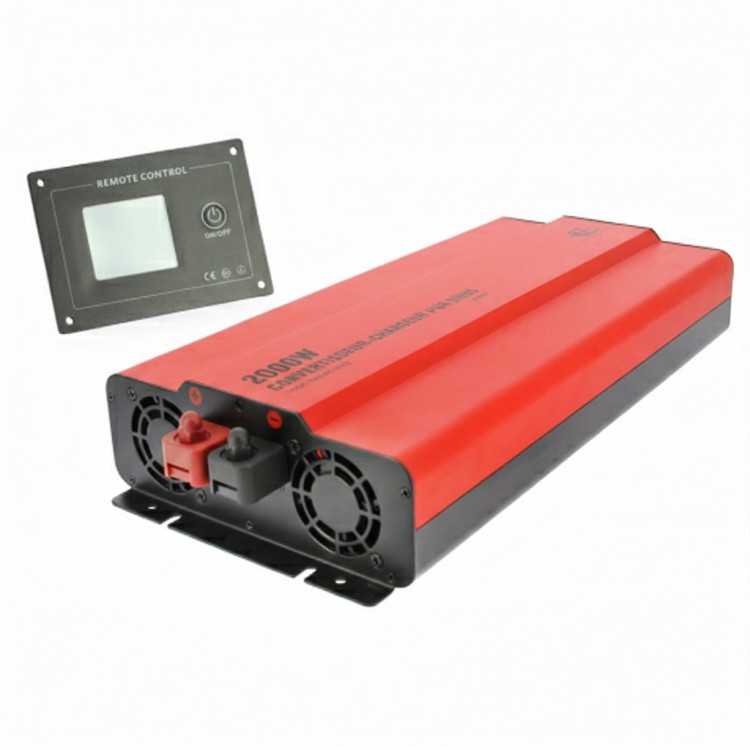

The EZA Pur Sinus 2000W Converter-Charger is the advanced solution for the electrical management of campers, equipped vans and caravans. This centralized system integrates three essential functions in a single compact machine body, guaranteeing safety and energy continuity both when parked and travelling.

The 3 Key Functions of the System:

1. Inverter 12V/230V Onda Pura Pur Sinus technology provides stable and clean power. It is essential to protect delicate electronic equipment (PCs, tablets, coffee pod machines) which could be damaged with cheap modified wave inverters.

2. Multi-Profile Smart Charger The charger operates with an IUoU charging curve to ensure maximum battery life. It is possible to select the specific charging profile for Lithium LiFePO4, AGM, Gel or Lead Acid. The 20A/40A power selector allows you to adapt the charging intensity to the specific needs of the system.

3. MPS (Main Priority System) function The system automatically detects the presence of an external 230V source (camping socket or generator). The MPS function ensures automatic switching to the grid without power interruptions, simultaneously recharging the cell's battery.

Display and Total Control: The device is designed for constant and intuitive monitoring.

  • Integrated LCD display: allows you to view input and output voltage, charging current, operating status and error messages in real time.

  • Remote Control: the external module with 5 meter cable allows you to turn the inverter on, off and monitor it from the living area, leaving the main unit installed in the locker or technical compartment.

ITECHNICAL INFORMATION:

  • Input voltage: 12V DC (battery)
  • Output voltage: 230V AC (pure sine wave)
  • Function 1: Pur Sinus converter - stable power supply for all devices
  • Function 2: 230V charger with IUoU curve
  • Function 3: MPS (automatic network priority) system
  • Compatible: lead acid (AGM, gel), lithium batteries
  • Current selector (2000W / 3000W models): 20A / 40A
  • Battery type selector: manual adjustment
  • Remote control: supplied with 5m cable
  • Display: LCD screen (voltage, charge, status, errors)
  • Protections: overload, overheating, short circuit, reverse polarity
  • Usage: campers, vans, caravans, off-grid sites
  • Installation: Installation by a professional is recommended

Features

  • Rated power: 2000 W
  • Nominal peak power (3 s): 4000
  • DC input voltage: 10 - 16 V
  • AC output voltage: 230V
  • Converter technology: Pure sine wave
  • AC socket: Type F
  • Energy efficiency: >87
  • No-load consumption: <0.95 A
  • MPS priority sector: Yes
  • Low voltage safety: Yes, 11V
  • High voltage safety: Yes, 16V
  • Reverse polarity protection: No
  • Short circuit protection: Yes
  • Protection against overheating: Yes
  • USB socket output: 1 USB/5 V, 2.1 A
  • Communication mode: Remote control with LCD cable (5m)
  • Authorized position/fixation: Vertical and horizontal
  • Connect: Cable 25 mm²/50 cm x 2
  • DC connection: M10 + M10 eyelet cable lugs
  • Protection fuse: No
  • Length: 485 cm
  • Width: 220 cm
  • Height: 80 cm
  • Nominal charger power: 40 A
  • Load selector: 20/40A
  • Battery type: Acid / AGM / Gel / Lithium
  • Battery type selection: Manual
  • Loader technology: IUoUProfil loading profile
  • Net weight: 4.5 kg
