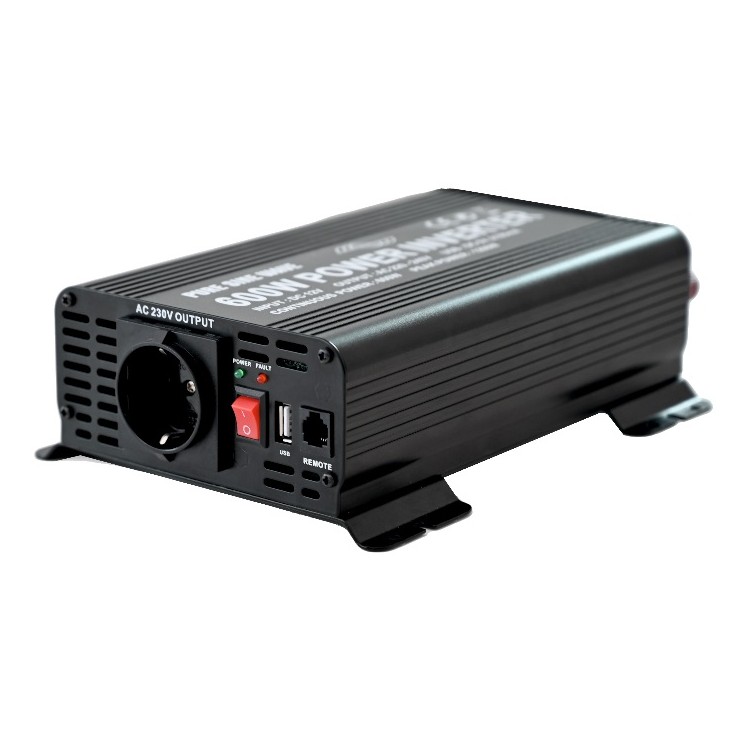

CBE Inverter ERP600 12V/230V with Pure Sine Wave 600W
  • CBE Inverter ERP600 12V/230V with Pure Sine Wave 600W

CBE Inverter ERP600 12V/230V with Pure Sine Wave 600W

155.00
Tax included
2587
8033123267823
1 Item
Last items in stock
Quantity
Last items in stock
New
2587
1 Item

Data sheet

2587
CBE

CBE Inverter ERP600 12V/230V with Pure Sine Wave 600W

The new ?ERP? series inverters, with pure sine wave output, specifically designed for use in campers and cars, are characterised by high performance, construction quality, maximum safety and reliability.

Main features and functions:
  • Pure sine wave output, to maximize the efficiency of the powered devices and especially recommended for sensitive 230V users, such as audio and video equipment, laptops, satellite systems, appliances and household appliances with electric motors, etc...
  • Complete with USB Type A port.
  • Reduced size and weight thanks to HF technology.
  • High quality and sturdy construction with aluminum alloy casing.
  • Electrical isolation between 12Vdc input and 230Vac output.
  • ?Smart? cooling fan controlled according to load and temperature.
  • Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity.
  • Provision for connection of remote control panel.

TECHNICAL INFORMATION:

CODE: 215477
OUTPUT TECHNICAL DATA
NO LOAD VOLTAGE: 230Vac±10%
LOAD VOLTAGE: 210÷240Vac
FREQUENCY: 50HZ
STARTING POWER: 1200W
CONTINUOUS POWER: 600W
OUTPUT WAVEFORM: Pure sine (THD < 5%)
SHORT CIRCUIT PROTECTION: YES
OVERLOAD PROTECTION: 650÷750W

TECHNICAL INPUT DATA
WORKING VOLTAGE: 11÷15Vdc
NO LOAD CURRENT: ? 1.0A
LOW VOLTAGE ALARM: 10.5Vdc
LOW VOLTAGE PROTECTION: 9.5Vdc
HIGH VOLTAGE PROTECTION: 16Vdc
REVERSE POLARITY: Yes (fuse)

GENERAL TECHNICAL DATA
YIELD: ? 85%
VENTILATION: Forced, automatic variable regulation
WORKING TEMPERATURE: -15° ÷ +25°C; 60°C at 40% load
OVERTEMPERATURE PROTECTION: YES
CONNECTION: 230V Schuko socket
CONNECTION TO THE BATTERY: Terminals
USB OUTPUT: 1x USB Type A
DIMENSION (mm): 272 x 171 x 74H
WEIGHT: 1.75Kg
INTEGRATED IVT FUNCTION: No
