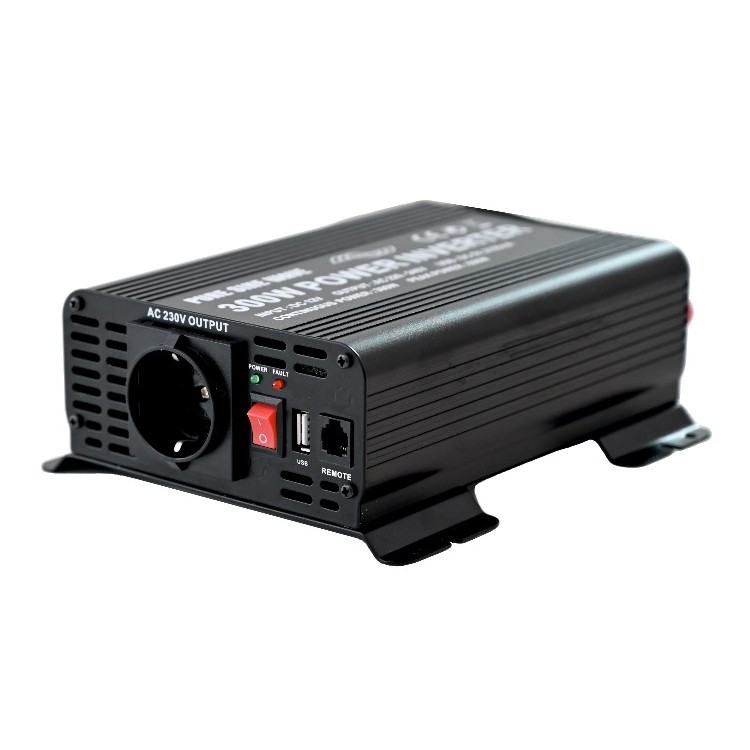

CBE Inverter ERP300 12V/230V with Pure Sine Wave 300W
The new ?ERP? series inverters, with pure sine wave output, specifically designed for use in campers and cars, are characterised by high performance, construction quality, maximum safety and reliability.
Main features and functions:
Pure sine wave output, to maximize the efficiency of the powered devices and especially recommended for sensitive 230V users, such as audio and video equipment, laptops, satellite systems, appliances and household appliances with electric motors, etc...
Complete with USB Type A port.
Reduced size and weight thanks to HF technology.
High quality and sturdy construction with aluminum alloy casing.
Electrical isolation between 12Vdc input and 230Vac output.
?Smart? cooling fan controlled according to load and temperature.
Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity.
Provision for connection of remote control panel.
TECHNICAL INFORMATION:
CODE: 215475 OUTPUT TECHNICAL DATA NO LOAD VOLTAGE: 230Vac±10% LOAD VOLTAGE: 210÷240Vac FREQUENCY: 50HZ STARTING POWER: 600W CONTINUOUS POWER: 300W OUTPUT WAVEFORM: Pure sine (THD < 5%) SHORT CIRCUIT PROTECTION: YES OVERLOAD PROTECTION: 360÷400W
TECHNICAL INPUT DATA WORKING VOLTAGE: 11÷15Vdc NO LOAD CURRENT: ? 0.8A LOW VOLTAGE ALARM: 10.5Vdc LOW VOLTAGE PROTECTION: 9.5Vdc HIGH VOLTAGE PROTECTION: 16Vdc REVERSE POLARITY: Yes (fuse)
GENERAL TECHNICAL DATA YIELD: ? 85% VENTILATION: Forced, automatic variable regulation WORKING TEMPERATURE: -15° ÷ +25°C; 60°C at 40% load OVERTEMPERATURE PROTECTION: YES CONNECTION: 230V Schuko socket CONNECTION TO THE BATTERY: Terminals USB OUTPUT: 1x USB Type A DIMENSION (mm): 236 x 171 x 74H WEIGHT: 1.4Kg INTEGRATED IVT FUNCTION: No
CBE MCI3/G recessed panel for remote control of ?ER? and ?ERP? series inverters. Panel equipped with LEDs to display the inverter status (on/off) and complete with: Cable L=6m Berker "BMAC1C" frame that can be combined with the ?Modular Plates?...
