DC-DC Converter LiFePo4 for Camper NE325 40A 12V

2143
199.00
Tax included delivery in 5-7 days
Quantity
Last items in stock

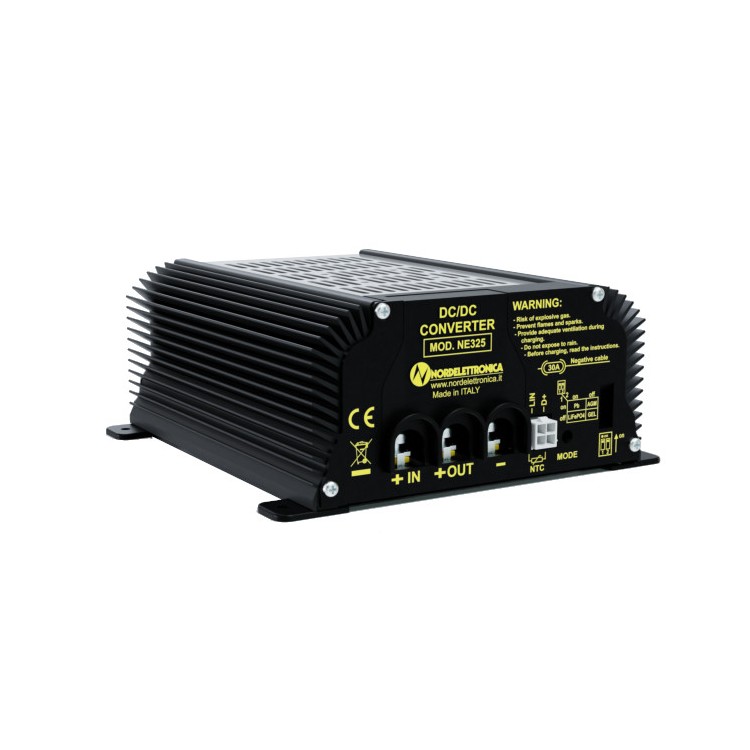

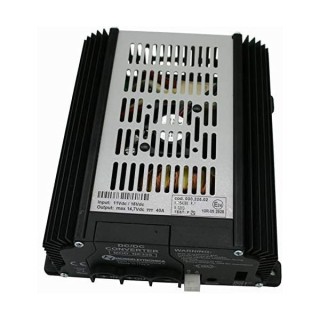

DC/DC CONVERTER NORDELETTRONICA NE325 12V40A

This converter becomes indispensable for optimizing the charge between the engine battery and the service battery of campers, caravans, boats.

TECHNICAL INFORMATION :

  • Input voltage: 11Vdc - 15Vdc
  • Max input current: 48A
  • Output voltage: 13.5Vdc - 14.7Vdc
  • Max output current: 40A
  • Battery type: Lead-acid, Gel, AGM, LiFeP04
  • Charging curve settings: 4 charging profiles
  • Speed controlled fan: yes
  • Visual indicator: 3-color LED
  • Lin-Bus communication: yes
  • Charging voltage compensation with temperature : available ( if NTC connected, optional not included )
  • Degree of protection: IP20
  • Dimensions: 167 x 170 x 73 mm
  • Weight: 1.5Kg
  • Battery input/output: M5
  • NTC, D+, LIN Input: Molex MINI-FIT JR 4-way female connector with male terminal
  • Reverse polarity protection: yes ( input/output )
  • Short circuit protection: yes ( output )
  • Overload protection: yes ( output )
  • Overvoltage protection: yes ( output )
  • Charge overtemperature protection: yes ( output )
  • Battery overtemperature protection: available ( if NTC connected, optional not included )
New
2143
2 Items

Data sheet

2143
NORDELETTRONICA
Note forniture
4215.325.02

Specific References

EAN13
8033123268288
