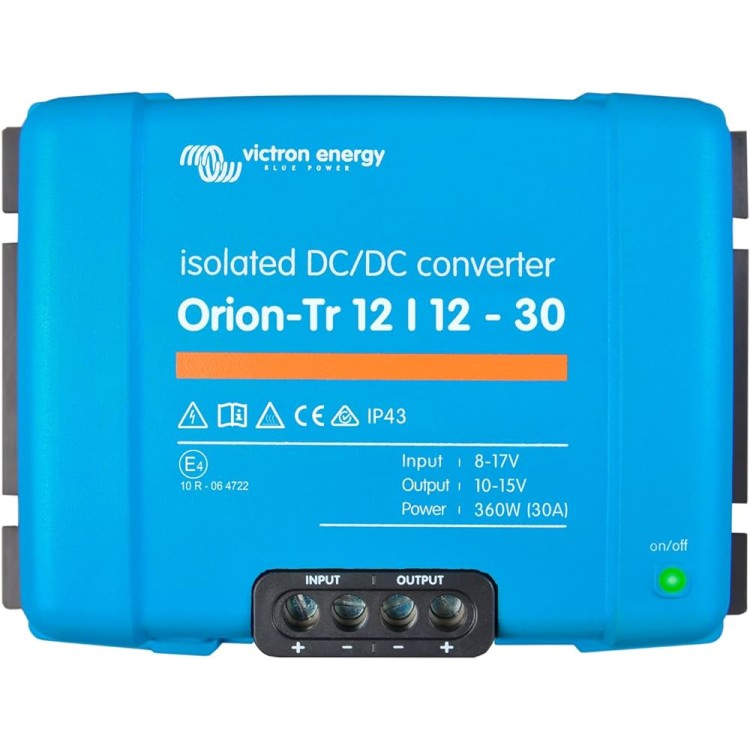

VICTRON ENERGY ORIO-TR ISOLATED DC/DC CONVERTER
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or, for example, with the engine start/stop switch (see manual).
All models are short circuit proof and can be connected in parallel to increase the output current.
An unlimited number of units can be connected in parallel.
Protected from high temperatures
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals facing down.
Screw terminals
No special tools are required for installation.
Input fuse (non-replaceable)
Only on 12V and 24V input models.
Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart to charge your battery.
TECHNICAL INFORMATION
Input voltage range :10-17V
Undervoltage shutdown : 7V
Restart under voltage : 7.5V
Nominal output voltage : 12.2V
Output voltage adjustment range :10-15V
Output voltage tolerance +/- 0.2V
Output noise 2 mV rms
Continuous output current at rated output voltage and 40°C : 30A
Maximum output current (10s) at rated output voltage minus 20% : 40A
Short circuit output current : 60A
Continuous current output power at 25°C : 430W
Continuous current output power at 40°C: 360W
Efficiency : 87 %
Input current without load (2) : <80mA
Current consumption : <200uA when disabled via its remote port
Galvanic isolation : 200 VDC between input, output and case
Operating temperature range : -20 to +55°C (derate 3% per °C above 40°C)
Max. humidity 95% non-condensing
DC Connection : Screw Terminals
Maximum cable cross-section: 16 mm² (AWG6)
Weight Models with 12V input and/or 12V output : 1.8 kg (3 lbs)
Dimensions Models with 12V input and/or 12V output : 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inches)
Safety standards: EN 60950
Emission : EN 61000-6-3, EN 55014-1
Immunity : EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive : ECE R10-5
