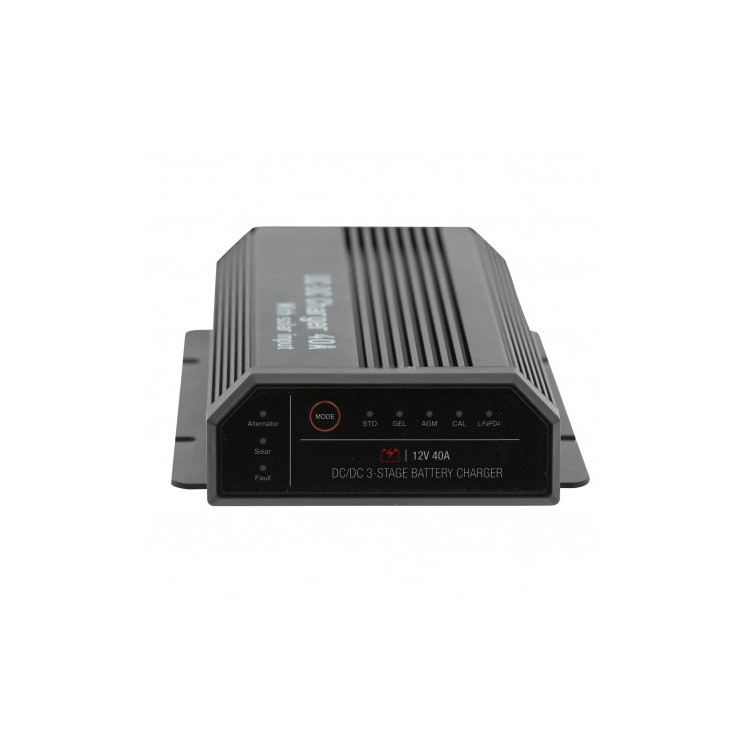

EZA F1 DC-DC simultaneous charging from alternator and photovoltaic, for your utility battery
Ideal solution for maximum energy autonomy. An intelligent battery charger for continuous power.
The F1 EZA DCDC 40A battery charger is a latest generation DC voltage converter, designed to optimize the charging of auxiliary batteries in campers, converted vans and leisure vehicles. It combines simultaneous charging of the alternator with that of the solar panels, ensuring fast and high-performance charging. Equipped with a 500W MPPT regulator, it makes the most of the available solar energy to optimize autonomy. It is compatible with all auxiliary battery technologies (Acid, GEL, AGM, Lithium), offering a reliable and versatile solution for your electrical installation. The DCDC 40A F1 has been designed to work with the latest vehicles, in particular those equipped with Euro 6 and Euro 6+ smart alternators, which require optimized charge management. It automatically adjusts the input voltage to ensure a stable and efficient charge. It supports all auxiliary battery technologies, making it an ideal solution for any system: With a nominal charging current of 40A, the DCDC 40A F1 offers accelerated charging, allowing it to recover energy quickly, even during short journeys. With its adjustable cutoff threshold (11.8-12.8V) and floating trigger threshold at 13.6V, it ensures a perfect balance between performance and battery conservation.
It is equipped with a series of protections to ensure safe operation: Overvoltage protection Overheating protection Reverse polarity protection Low voltage protection
With a self-discharge at vacuum of just 9 mA, it minimizes energy losses when not in use, contributing to optimized energy management. Compact, robust and designed for extreme environments
The DCDC 40A F1 Eza is designed to operate in the harshest conditions. Its high degree of protection ensures high resistance to dust, humidity and vibration, making it ideal for use in recreational vehicles or harsh environments.
With compact dimensions of 184 x 129 x 43 mm, it fits easily into any equipment compartment, allowing you to maximize space without compromising performance.
TECHNICAL INFORMATION:
Rated load current: 40A
Alternator input voltage: 9-32 V
Solar input voltage: 10-32 V
Alternator compatibility: Euro 6 / Euro 6+
Type of load: mixed (alternator + solar)
Battery type: Acid, GEL, AGM, Lithium
Solar controller: MPPT / 500W
No-load self-discharge: 9mA
Shutdown threshold: 11.8-12.8V
Floating intervention threshold: 13.6V
Protection against overvoltage, overtemperature, reverse polarity and low voltage
Dimensions: 184 x 129 x 43 mm
Degree of protection: high, designed for harsh environments
VICTRON ENERGY ORIO-TR ISOLATED DC/DC CONVERTER The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or, for example, with the engine start/stop...
DC/DC CONVERTER NORDELETTRONICA NE325 12V40A This converter becomes indispensable for optimizing the charge between the engine battery and the service battery of campers, caravans, boats. TECHNICAL INFORMATION : Input voltage: 11Vdc - 15Vdc Max...
DC/DC CONVERTER NORDELETTRONICA NE325 12V 25A This converter becomes indispensable for optimizing the charge between the engine battery and the service battery of campers, caravans, boats. TECHNICAL INFORMATION : Input voltage: 11Vdc - 15Vdc Max...

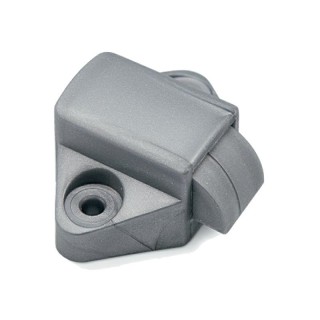

ABS mechanism with spring for camper door handles Mechanism suitable for wall mounting, screws not included. TECHNICAL INFORMATION: Wheelbase: 33 mm Color: Grey Model: AS128-ST-LE
