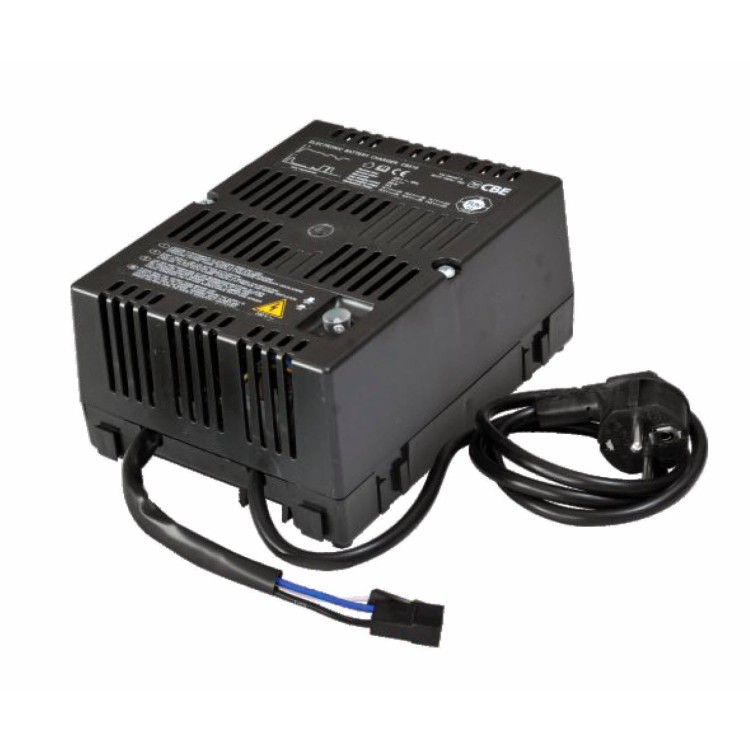

The CBE CB510-3 ?CB500? series switching battery charger is able to charge lead batteries (lead-acid and lead-gel) automatically. The battery charger is protected against overtemperature and the 12V outputs are protected against short circuit and reverse polarity.
Six-step charging system for 12V batteries:
Desulphation: when the battery charger is turned on, only if the battery needs it, it is charged at a voltage of 15.2V until the current exceeds 2A or in any case for a maximum of 2 hours.
Bulk: battery charge with maximum current until the end-of-charge voltage is reached. NB:The end-of-charge voltage is reached only if the battery is efficient
Absorption: Completion of battery charging with constant end-of-charge voltage for the time defined by the charging line with progressive reduction of current.
Float: Maintenance charge at constant voltage for a maximum of 15 hours. High battery absorption causes the Bulk phase to restart.
Stand-by: The battery charger no longer supplies energy and switches to the Refresh phase only when the battery voltage drops below 13V.
Refresh: The battery is charged at the Bulk charging voltage for a maximum of 1h; this phase is designed to compensate for the battery's self-discharge during any prolonged periods of inactivity. Charging then restarts from the Float phase.
High frequency switching technology allows for high efficiency with reduced weight and size.
TECHNICAL INFORMATION
Model: CB510-3
Nominal Voltage: 230Vac +-10%
Frequency: 50/60 Hz
Maximum power: 150W
Protection fuse: T 3.15A (glass 5x20)
Safety switch: 230V ( illuminated )
Bulk voltage ( maximum ): 14.1V - 14.4V - 14.7V
Float Voltage ( minimum ): 13.5V - 13.8V
Maximum current: 10A
Charging line: IUoU
Battery type selector: Pb-Acid / Pb-Gel
Charging line selector: 3 positions ( A - B - C )
Short circuit and reverse polarity protection: 15A ( blade )
