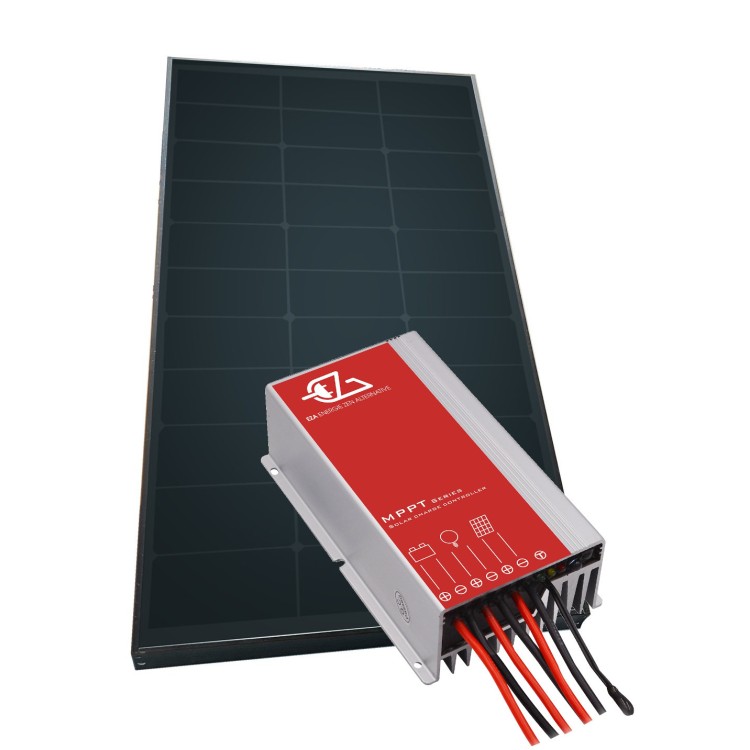

1 - IBC Photovoltaic Kit 200W Bluetooth MPPT Controller 20A Brackets Cable
  • 1 - IBC Photovoltaic Kit 200W Bluetooth MPPT Controller 20A Brackets Cable

IBC Photovoltaic Kit 200W Bluetooth MPPT Controller 20A Brackets Cable

3046
190.00
Tax included available in 10/20 days
Quantity
On order in 10/20 days

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)



200W IBC SOLAR PANEL

The energy revolution on board the leisure vehicle
Enter a new era of energy autonomy with EZA solar panels, which integrate the revolutionary IBC technology. Designed to redefine the standards of performance and efficiency, these panels are the key to a greener future and unprecedented energy independence.

IBC (Interdigitated Back Contact) technology is at the heart of these solar panels and allows you to maximize the conversion of sunlight into electricity. By moving all metal contacts to the back, the solar cells benefit from a maximized exposure surface, reducing losses and improving overall efficiency.

Built to last, EZA solar panels with IBC technology stand out for their robustness and ability to withstand the most extreme conditions. Their high-quality aluminum chassis ensures long-lasting durability and reliable long-term performance, even in the harshest environments. In fact, this cutting-edge technology makes EZA solar panels a clean energy solution with exceptional performance.
Thanks to their innovative design, these panels surpass conventional models by providing high yields, even in variable lighting conditions.

These panels not only offer unparalleled energy performance, but also shine with their design. Their completely black front part ensures perfect aesthetic integration on your leisure vehicle, combining cutting-edge technology and elegance.

Choosing IBC solar panels from the EZA brand means investing in the future of clean energy.
Redefine your environmental impact and benefit from a reliable and sustainable energy source thanks to our range of cutting-edge solar panels.
Most advanced technology

Maximum yield: exploit every ray of sunshine thanks to IBC technology.
Exceptional durability: designed to withstand bad weather and time.
Elegant design: a refined aesthetic that adapts perfectly to your vehicle.
Investment in the future: reduce your carbon footprint with clean and renewable energy.
Energy autonomy: benefit from a reliable energy source for all your adventures.

MPPT Bluetooth 20A CHARGE CONTROLLER

The charge controller, also called solar charge controller, is a small electronic device that is positioned between the solar panel and the battery and which allows you to adjust the voltage of the solar panel to best distribute it to the battery.
The EZA brand offers a complete range of solar charge controllers equipped with MPPT technology, the most efficient currently identified.

MPPT technology (Maximum Power Point Tracking OR maximum power point search) allows the solar panel to operate at its optimal voltage for maximum output power. This means that the voltage and current produced by the solar panel(s) changes based on the brightness throughout the day. On average, MPPT technology is 30% more efficient than classic PWM technology.

Regulators equipped with Bluetooth, which allows you to monitor and control the various data coming from the regulator (voltage, current, etc.) via the smartphone application designed specifically for this range of regulators: My E-Solar.

MPPT technology
Short circuit safety
Overheating safety
Reverse polarity safety
15A

TECHNICAL INFORMATION 200W IBC SOLAR PANEL

  • Technology: IBC
  • Cell efficiency: 23%
  • Frame: Black aluminium
  • Type of fixing: Gluing
  • Finish: Full Black
  • DC connectors: Pre-assembled with 5 m cable
  • Protection/safety: anti-return diode + anti-UV cable
  • Supplied with: roof duct
  • Certifications, approvals: CE, IP65
  • Rated power: 200W
  • Product dimensions in mm (L x W x H): 1202 x 770 x 44.5
  • Net weight: 11 kg
  • Voltage at maximum power: 20.6 V
  • Current at maximum power: 11.45 A
  • Operating voltage: 17.3V
  • Operating current: 10.7 A

TECHNICAL INFORMATION MPPT Bluetooth 20A CHARGE CONTROLLER

  • Technology: MPPT
  • Low voltage disconnect (Gel, AGM, Liquid): 11.2 V
  • Target charging voltage (lithium): 14.4V
  • Charge volt recovery (lithium): 14 V
  • Low voltage disconnection (lithium): 10.6 V
  • Low voltage reconnection (lithium): 11.4 V
  • 0 °C load protection (lithium): Yes
  • Temperature compensation: -4.17 mV/K per cell (added, equal) -3.33 mV/K per cell (floating)
  • Battery Type: AGM, Liquid, Gel, Lithium (Default: AGM)
  • Bluetooth: Yes
  • Day/night delay: 0 min
  • MPPT monitoring range: (battery voltage +1.0V) Voc*0.9
  • Ambient temperature: -35 °C +60 °C
  • Supplied with instructions
  • Certifications/approvals: CE compatible with the R10 environment
  • Warranty: 24 months
  • Rated voltage: 12V / 24V (automatic recognition)
  • Max charging current: 20A
  • Support voltage (gel, AGM, liquid): 14.5V / 29V
  • Equal voltage (Gel, AGM, Liquid): 14.8 V / 29.6 V
  • Float Voltage (Gel, AGM, Liquid): 13.7V / 27.4V
  • Low voltage reconnection (Gel, AGM, Liquid): 12V / 24V
  • Surge Protection (Gel, AGM, Liquid): 15.5V / 31V
  • Maximum battery voltage: 35 V
  • Maximum solar voltage: 55V
  • Max power panel(s): 260 W / 520 W
  • Day/night threshold: 5V/10V
  • Output current: 20 A
  • Self-discharge: 6 mA
  • Product dimensions (L x W x H): 95.8 x 145 x 42.5 mm
  • Net weight: 0.73 kg
  • Ambient temperature: -35 °C +60 °C
  • Wire size: pre-wired 4 mm²
  • IP protection index: IP67

3046
