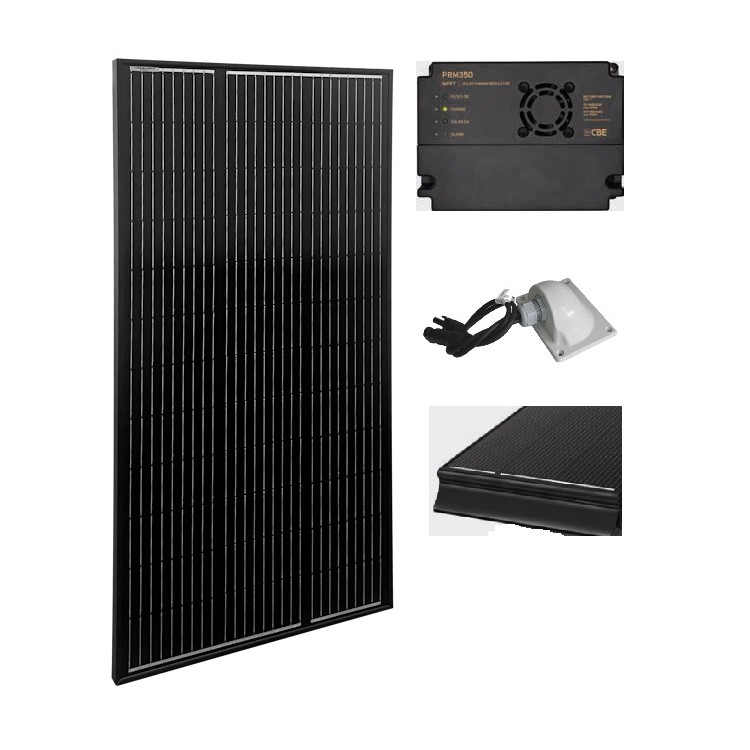

105W CBE SMALL PLUS BLACK PHOTOVOLTAIC SOLAR PANEL KIT FOR CAMPER BOAT CABIN
THE KIT INCLUDES:
105W BLACK SERIES Photovoltaic Panel
CBE MPPT PRM350 Solar Charge Controller for Photovoltaic Modules
CBE KT6-C50 Camper Roof Cable Entry Solar Panel
KFBPN530 brackets in black
CBE photovoltaic modules are built with PERC (Passivated Emitter and Rear Cell) solar cells that guarantee a better level of conversion efficiency and, at the same time, further technical advantages such as a lower temperature coefficient and therefore better performance. Thanks to the special anti-reflection treatment of the cells and the special glass used, a high-performance photovoltaic module has been obtained. The high-transmittance tempered glass is resistant to impacts and atmospheric agents. The back of the module is protected by a sheet of white Tedlar, which prevents any infiltration of air and humidity, isolating the electrical contacts and avoiding any possibility of oxidation of the same. The frame of the module is made of anodized aluminum and the junction box installed on the back contains the by-pass diodes and cable glands necessary for the connection. CBE photovoltaic modules are built with the most advanced technologies, meet the requirements of European standards and are covered by a 25-year warranty on the declared power.
The PRM350 solar regulator is able to charge lead batteries (liquid, gel and AGM) and lithium at 12V automatically by controlling and limiting the energy supplied by the connected photovoltaic modules. It has an MPPT (Maximum Power Point Tracker) system that allows it to draw the maximum power that can be supplied by the photovoltaic module in every situation. The PRM350 is suitable for operation with photovoltaic modules from 32 to 72 cells up to a maximum power of 350W.
TECHNICAL INFORMATION PHOTOVOLTAIC PANEL:
CODE: 21598B
TYPE: PERC (Passivated Emitter and Rear Cell) NUMBER OF CELLS: 36 RATED VOLTAGE: 12V MAX POWER: 105W TOLERANCE: +-3% OPEN CIRCUIT VOLTAGE: 24.75V SHORT CIRCUIT CURRENT: 5.46A VOLTAGE AT MAX POWER: 20.75V CURRENT AT MAX POWER: 5.10A DIMENSIONS (mm): 1062 X 530 X 30 WEIGHT(Kg): 6.2
TECHNICAL INFORMATION MPPT REGULATOR:
MODEL: PRM350 CODE: 204285 RATED VOLTAGE: 12V MAXIMUM VOLTAGE OF THE PHOTOVOLTAIC MODULE OPEN CIRCUIT (Voc): 45V MAXIMUM APPLICABLE POWER: 300W (32÷40 cells) ? 350W(41÷72 cells) MAX OUTPUT CURRENT: 25A NUMBER OF PHOTOVOLTAIC INPUTS: 2 YIELD: >95% END OF CHARGING VOLTAGE: 14.1V (A) - 14.4V (B) - 14.7V (C) -14.6V (Li) FLOAT VOLTAGE: 13.5V (A) - 13.8V (B) - 13.8V (C) -13.8V (Li) NUMBER OF CHARGING LINES: 4 REVERSE CURRENT BLOCKING DEVICE:Electronic SHORT CIRCUIT AND REVERSE POLARITY PROTECTION: YES THERMAL PROTECTION: YES CONNECTION OF PT 742 TEST PANEL SELF-CONSUMPTION 0 (self-shutdown (in the absence of sunlight) AUTOMATIC SHUT-OFF in the absence of sunlight DIMENSIONS (mm): 150 x 110 H48
