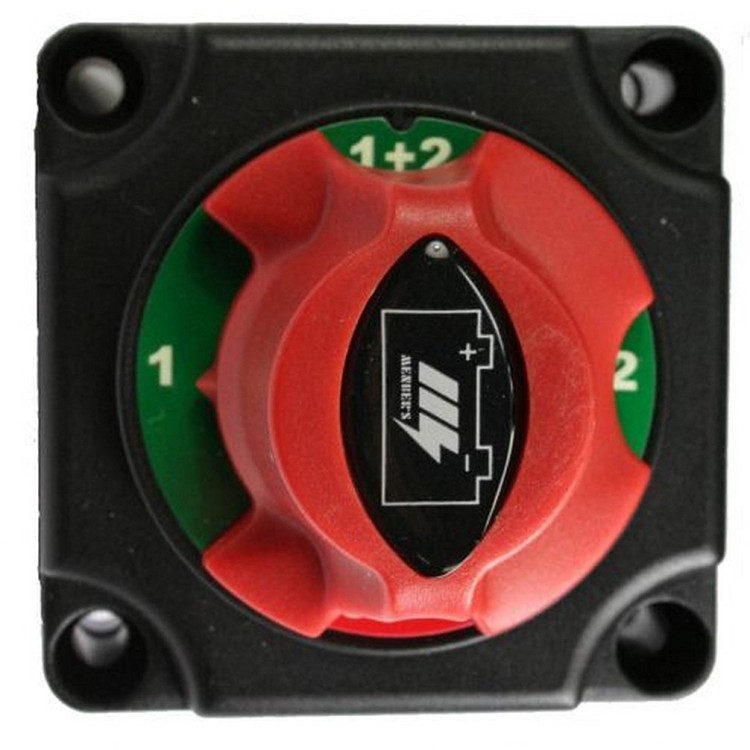

Battery selector with contacts protected against accidental short circuit by a body, with removable bottom cover.
Side walls designed for cable exit in the desired position.
4-position battery selector switch, useful in campers and boats Model MENBER'S 08080900:
- OFF - Batteries disconnected from the system.
- 1 - Using the battery only 1
- 2 - Using only the battery 2
- 1+2 - Simultaneous use of both batteries
It can be used to manage two battery banks, such as:
- Engine Battery - Service Battery
- Service Battery 1 - Service Battery 2
TECHNICAL INFORMATION
- System voltage: 6V-12V-24V dc
- Maximum continuous current: 300A
- Maximum inrush current: 1000A 5 sec.
- Degree of protection: IP54
- Operating temperature: -40°C / +50°C
- Contacts: Silver Plated Copper
- Contact Nuts: Brass
- Dimensions: 67 x 67 mm Height 74.8 mm
- Distance between installation holes: 55mm
Data sheet
- MENBER'S
STB309
- Note forniture
- 95356 sifi
Specific References
- EAN13
- 8022965808097
- MPN
- STB309
