V-Tac VT-28358 Module 4 LEDs 1.44W SMD 12V Waterproof IP68 Cold White
2981
1.50
Tax included
available in 10/20 days
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)

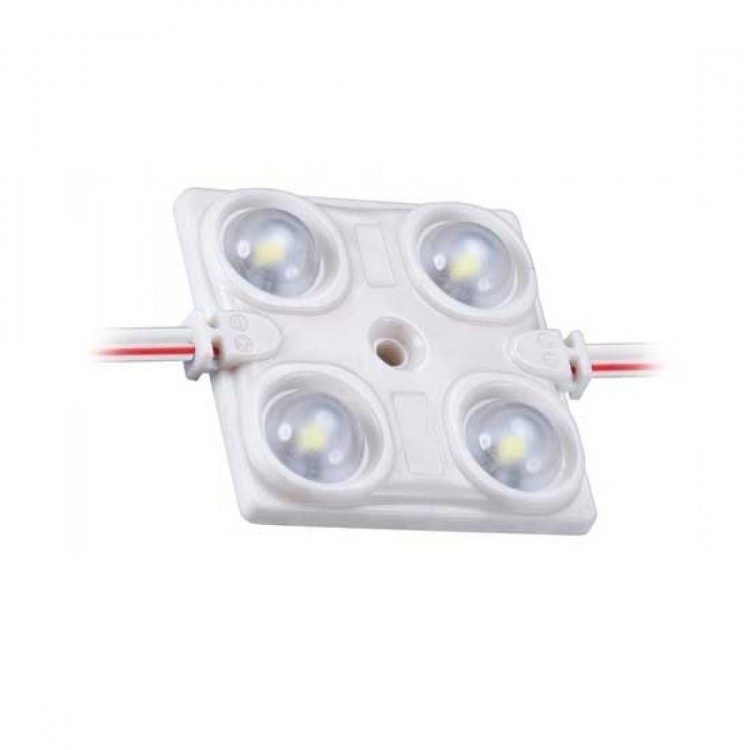

V-Tac VT-28358 Module 4 LEDs 1.44W SMD 12V Waterproof IP68 -130
Square single-color module composed of 4 SMD 2835 LEDs with a total power of 1.44W and a total luminous flux of 135 lm. Made of ABS and aluminium, it has a 160° light beam and a ratio of 93 lm/W.
Thanks to its IP68 protection rating, it is suitable for both domestic and industrial use, and can also be used in interior and exterior architectural lighting.
Given its small size, it is also possible to use it for advertising or signaling signs of any size and thickness.
The diffused light beam allows for a homogeneous distribution of light, while the double-sided adhesive applied on the back makes the module easy to install.
The connection via solder cables allows you to power all the modules from a single source.
For operation, a 12V direct current power supply is required, proportionate to the total power absorption of all the connected modules.
Color temperature: 6000K (Cool White)
TECHNICAL DATA SHEET
Shape: Module
Light beam: 160°
Light flux 135 lm
Light efficiency: 93 lm/W
Power: 1.44W
Voltage: 12V
LED technology: SDM 2835
LED quantity: 4
Connector: solder cables
Material: ABS and aluminium
Waterproof: IP68
Dimensions: 37 x 37 x 6.8 mm
Application: double-sided adhesive on the back
PACKAGE CONTENTS
1 module of 4 SMD 2835 1.44W LEDs
12V power supply not included.
2981
Data sheet
V-TAC- Note forniture
- VT-28358
Specific References
- EAN13
- 3800157621731
3 other products in the same category:
LED Module Camper Boat 12V Universal 5W 3000K 300LM
UNIVERSAL MODULE 24 LED 12 V - DIAMETER 100 mm - 3000K - 300lm Modules that can be used inside homes, in campers and boats inside lockers and dark spots. The printed circuit board on which the LEDs are soldered is made of aluminum, in order to...
14.90
Customers who bought this product also bought:
1 voti
SikaFlex 521 UV Polyurethane Glue Sealant White 300mL Camper
Sikaflex®-521 UV is a thixotropic, elastic multifunctional sealant based on a polyurethane hybrid polymer, which cures on exposure to atmospheric moisture to form a durable elastomer. Sikaflex®-521 UV adheres well to a wide variety of substrates...
11.99

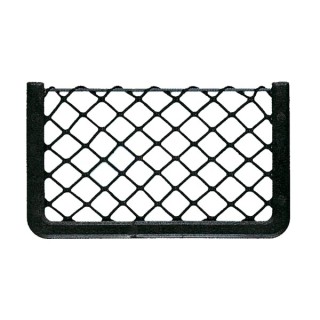

Net Storage Pocket with Frame 210 X 415 mm Car Camper Van
NET POCKET WITH NEWSPAPER FRAME Newspaper storage net for campers and cars. Made with quality materials in Italy. Equipped with frame and screw caps. TECHNICAL INFORMATION Color: Black Dimensions: 210 x 415 mm
14.90
1 voti
Aqua Kem Sachets 15 Sachets Disintegrating Toilet Chemical Camper ThetFord
THETFORD AQUA KEM BLUE SACHETS 15 SACHETS For over 35 years, Thetford has been developing toilet care products that ensure the proper functioning of our portable and cassette toilets. Researchers in our own renowned laboratories and external...
12.50
12 G4-NW Kanlux LED bulb White
G4-NW KANLUX WHITE LED BULB Kanlux LED12 G4 is a LED bulb based on new high-efficiency LED diodes. The refraction angle is 120º, the lifespan is 20,000 hours and the efficiency is 140 lumens per watt. TECHNICAL DATA Rated voltage: 12V AC; 12V DC...
3.50

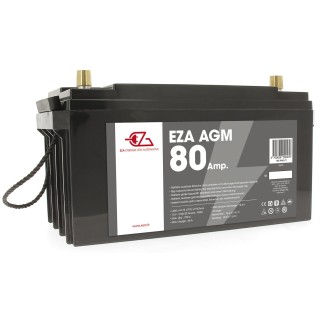

EZA 80 Ah AGM Battery for Camper and Photovoltaic Services
