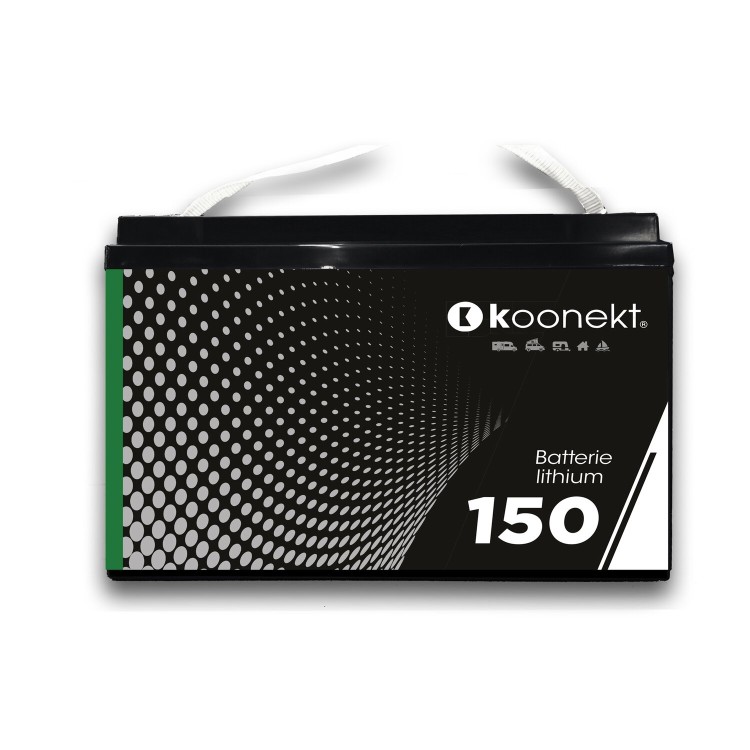

Koonekt 150 Batteria Al Litio Life4 12V 150ah camper van

2874
Koonekt
699.98
Tax included
Quantity
On order in 10/20 days

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Entry level version of the 150Ah Koonekt LiFePo4 lithium batteries.
Designed to cover medium and large energy needs on campers and vans.
The integrated BMS module optimizes charging, protecting the cells from overloads, deep discharges and short circuits.
It is possible to couple up to 2 batteries in parallel.

FEATURES

  • Model: Koonekt 150
  • Capacity: 150Ah
  • Maximum continuous discharge current: 150 A
  • Maximum pulse discharge current (3sec.): 400 A
  • Low voltage cutting: 10 V
  • Load current MaxE: 100 A
  • Recommended load current: 50 A
  • Parallel : YES, 4 units
  • Maximum inverter power: 1800 W
  • End of charge voltage: 14.6 V
  • Dimensions (W x H x D) in mm: 483 x 170 x 240 mm
  • Net weight: 15 kg
  • Self-discharge at no load: 46% / an
  • Integrated BMS: Yes
  • Capacity. : 1920 W h
  • Leasing: Plastic
  • Automatic switch: Integrated
  • MaxE load current: 1280 W
  • Maximum continuous discharge current: 150 A
  • Maximum continuous discharge current: 1920 W
  • Maximum peak discharge current 3 s: 5120 W
  • Maximum peak discharge current 3 sec: 400 A
  • Dim. (LxWxH): 485 x 170 x 240 mm
  • Height: 240 mm
  • Width: 170 mm
  • Length: 483 mm
  • Communication mode: Without
  • Series assembly: Yes
  • Number of cycles: > 2000 cycles
  • Authorized position/fixation: Flexible
  • Discharge cut-off threshold: 10 V
  • Lithium battery technology: LiFePo4
  • Operating temperature under load: from 0°C to 45°C °C
  • Exhaust operating temperature: -20°C / 55 °C
  • Voltage at the end of charge: 14.6 V
  • Rated voltage: 12.8 V
  • Installation type: Mobile applications
  • Cell type: Prismatic
  • Terminal type: M6
