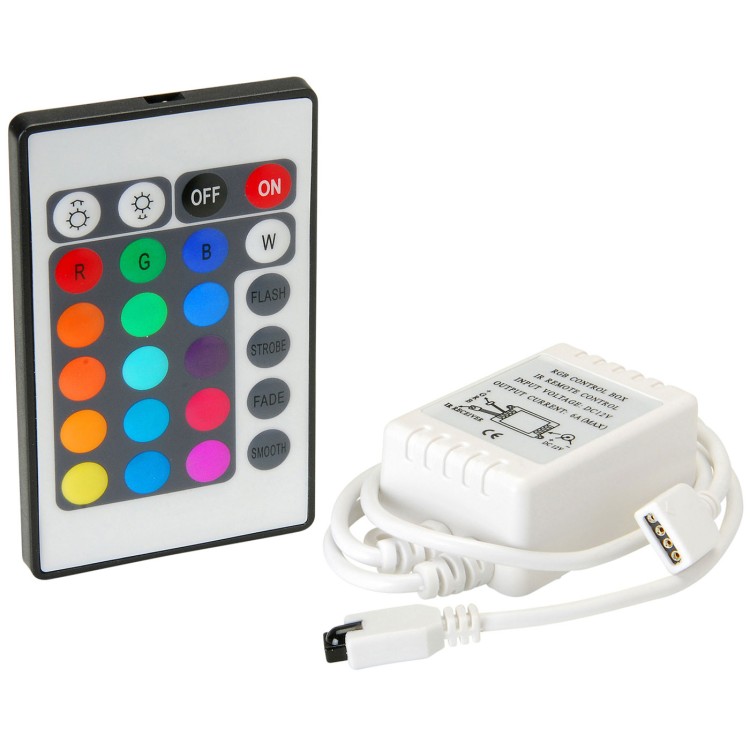

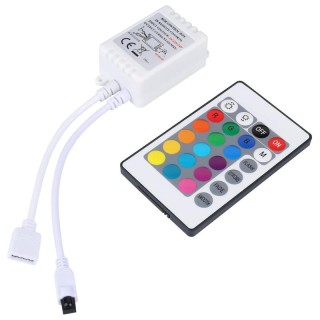

Practical and convenient RGB controller, working at 12Vdc. It can manage up to 2A per channel/color for a total of 6A. It can also be used for single-color lamps, as a 3-channel dimmer. For example, LED strip coils or 5050 RGB LED bars can be connected to this dimmer. It has a remote control complete with battery with 24 keys.
The package includes:
- an RGB control unit with infrared sensor and 4-wire output cable with connector
- a 24-key battery-powered remote control
- a power jack connector with red/black wire piece
TECHNICAL INFORMATION
- Power supply voltage: 12Vdc
- Maximum load current: 3 channels 2A total 6A
- Maximum power per channel: 24W
- Total Maximum Power: 72W
- Dimensions: 62x35x23 mm
- Weight: 50g
Specific References
- EAN13
- 3800230622211
