NEW MODEL WITH SMALLER DIMENSIONS

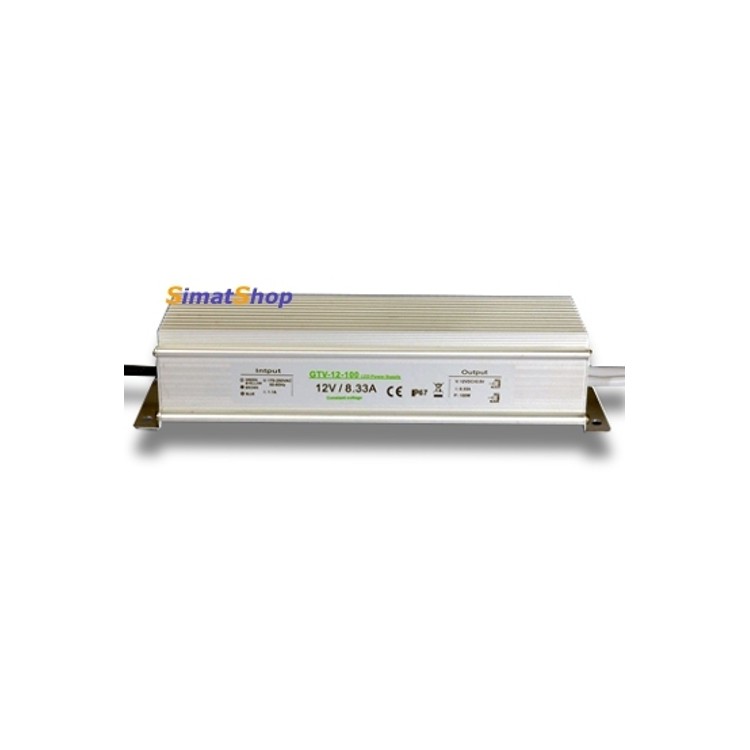

Transformer power supply from 220Vac to 12Vdc.
Excellent for powering LED strips or LED lamps.
It can also be used outdoors as it is built in IP67 class (waterproof); therefore it is not afraid of water and dust.
It is sold with stripped and tinned wires. There are two output wires to easily power two rows of LED strips.
Excellent in all those situations where a constant 12V voltage is needed.
It has four slots so it can be fixed to the wall.
Protected against:
- Overload: 20% above rated current
- Short circuit: self-reset
- Overvoltage: ?255Vac
- Overtemperature: ?85°C
TECHNICAL INFORMATION
- Power Supply: 100 Watt
- Input voltage: 220-240 Vac 47/63 Hz
- Output voltage: 12 Vdc
- Rated current: 8.3 Adc
- Fixing eyelets: 4
- Cooling: natural
- Output cables: 0.75 mmq
- Material: Aluminum
- Weight: 1200g
- Dimensions: 205X60x h45 mm
- Certificate: RoHS
- CE EN61347-1:2008 / EN61347-2-13.2006
- EN55015,2006+A1:2007, EN61547 1995+A1:2000
- EN61000-3-2:2006, EN6100-3-3:1995+A1:2001+A2:2005
Data sheet
- 0033
