Waeco 2200W 230V Roof Air Conditioner Kit with Internal Diffuser for Camper Caravan and Van

3234
799.00
Tax included available in 10/20 days
Quantity
On order in 10/20 days

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

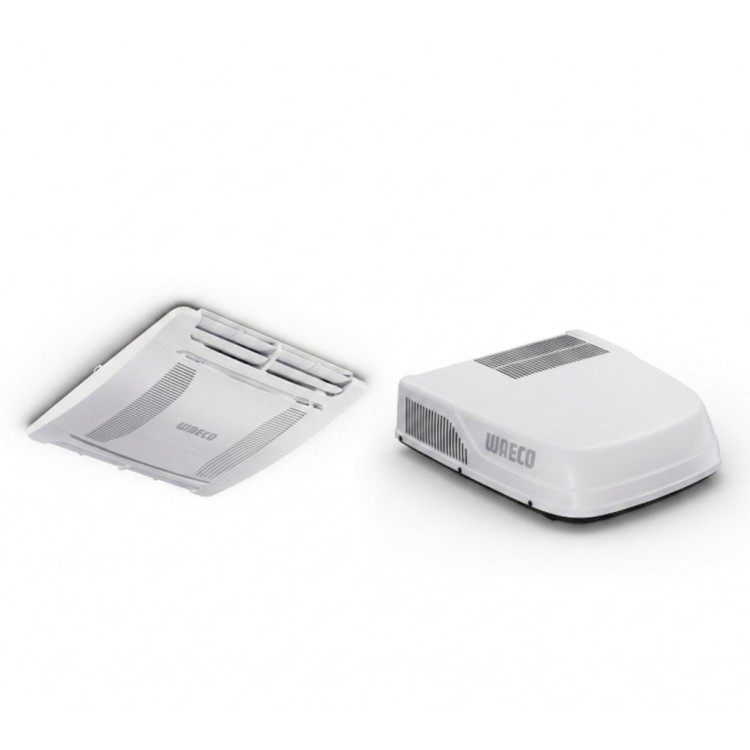

Waeco Roof Air Conditioner Kit 2200W (7500 BTU) 230V + Complete Internal Diffuser

The Waeco 230V Air Conditioning Kit is the definitive all-in-one solution to guarantee maximum thermal comfort on board medium and large campers, caravans and equipped vans (recommended vehicles from 6.5 to 8 metres). This complete package includes the 2200W (7500 BTU/h) rooftop refrigerant unit and the ultra-flat internal air diffuser, offering a ready-to-use system without the need to purchase separate accessories.

Advantages and Features of the Kit:

  • Ready to Install System: The package includes both the external engine block and the internal distribution panel. It can be installed on standard 40x40 cm roof openings (e.g. to replace an old porthole).
  • Ultra-Slim Internal Diffuser (54 mm): With a thickness of just 5.4 cm, the flat air diffuser integrates perfectly with the camper ceiling, safeguarding the internal space and habitability of the cell.
  • Bidirectional and Adjustable Air Flow: Fresh air is pushed evenly towards both the front and rear of the passenger compartment. The direction of the fins can be manually oriented for personalized comfort.
  • Active and Regenerable Filtration: The diffuser is equipped with a removable dust filter. It can be easily removed for ordinary cleaning and maintenance operations, ensuring a healthy environment.
  • Ecological Efficiency and Silence: It uses the modern R-32 refrigerant gas with low environmental impact. Optimized aerodynamics keep noise emissions below 70 dB, ideal for use while sleeping.
  • Total Smart Control: Temperature (settable from +16 °C to +30 °C) and fan speed can be conveniently managed via the wireless remote control included in the kit.

System Technical Specifications:

  • Cooling Power: 2200 W / 7500 btu/h
  • Power supply: 230 V (Inrush current: 16 A)
  • Max air flow: 350 m³/h
  • Refrigerant gas: R-32
  • External Unit Dimensions: 80.5 x 72.2 x 22.5 cm
  • Internal diffuser dimensions: 52 x 52 cm (Ceiling thickness: 54 mm)
  • Standard Installation Hole: 40 x 40 cm

Choose the complete Waeco package to eliminate the summer heat from your camper with a clean, professional and energy-efficient installation.
